Acnodes LW 846 Manual de usuario

ACNODES.COM

[email protected]

LW-846 INSTALLATION GUIDE

I.

INSTALLATION

DRIVER

LW-846 provides one Slim type CD-ROM, one 3.5" FDD and two removable HD Kits. The below diagram

shows how to install the disk drives.

Cardand CardClamp

The card clamp is designed to hold the add-on cards to fix securely into the slots and to prevent them

from vibrating

1. Back cover removed first by releasing the screws as the diagram below shown.

2. Unscrew the bottom side of the card clamp and remove it from the top fix hole from the chassis.

3. Slide the card in and carefully press it into the slot of backplane.

4. Adjust holding clamp to hold the card by screws

SlimTypeCD-ROM & FDD

RemovableHDKits

ACNODE.COM

[email protected]

LW-846 INSTALLATION GUIDE

Power Supply

Power supply is equipped at the rear of workstation and it is fastened by some screws as the diagram

below shown

Key Pad

TO CPU CARD V+

CN3

TO TEXT KEYPAD

KBD-01

CK

DA

G

CN1

CN6

181

TO KEYBOARD

G

DA

CK

G

CN5 13

TO FUNCTION KEYPAD

CN4

G

1

1

TO KEYBOARD

V+

G

G

DA

CK

V+

12

CN2

ACNODES.COM

[email protected]

LW-846 INSTALLATION GUIDE

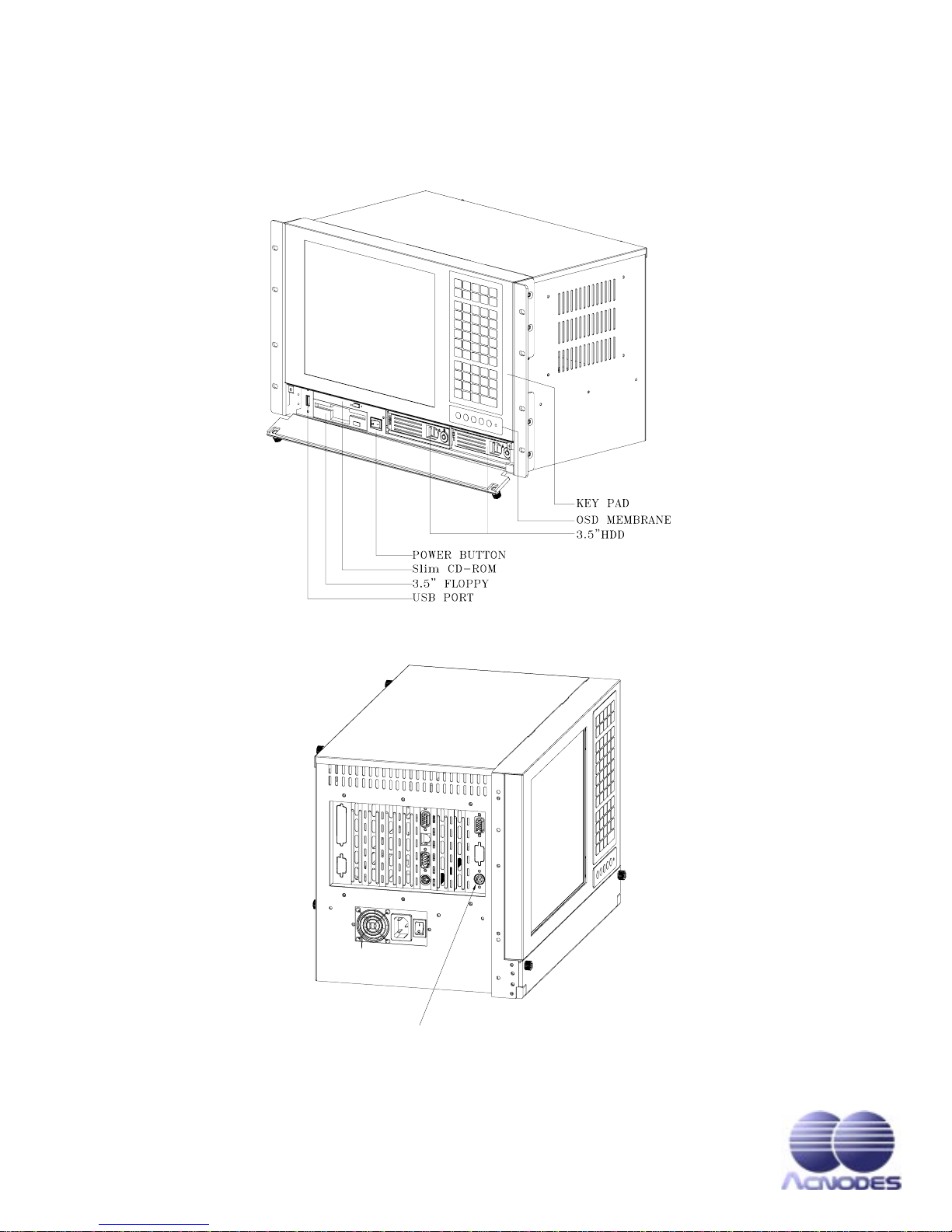

II.

FRONT VIEW

external keyboard

ACNODE.COM

[email protected]

LW-846 INSTALLATION GUIDE

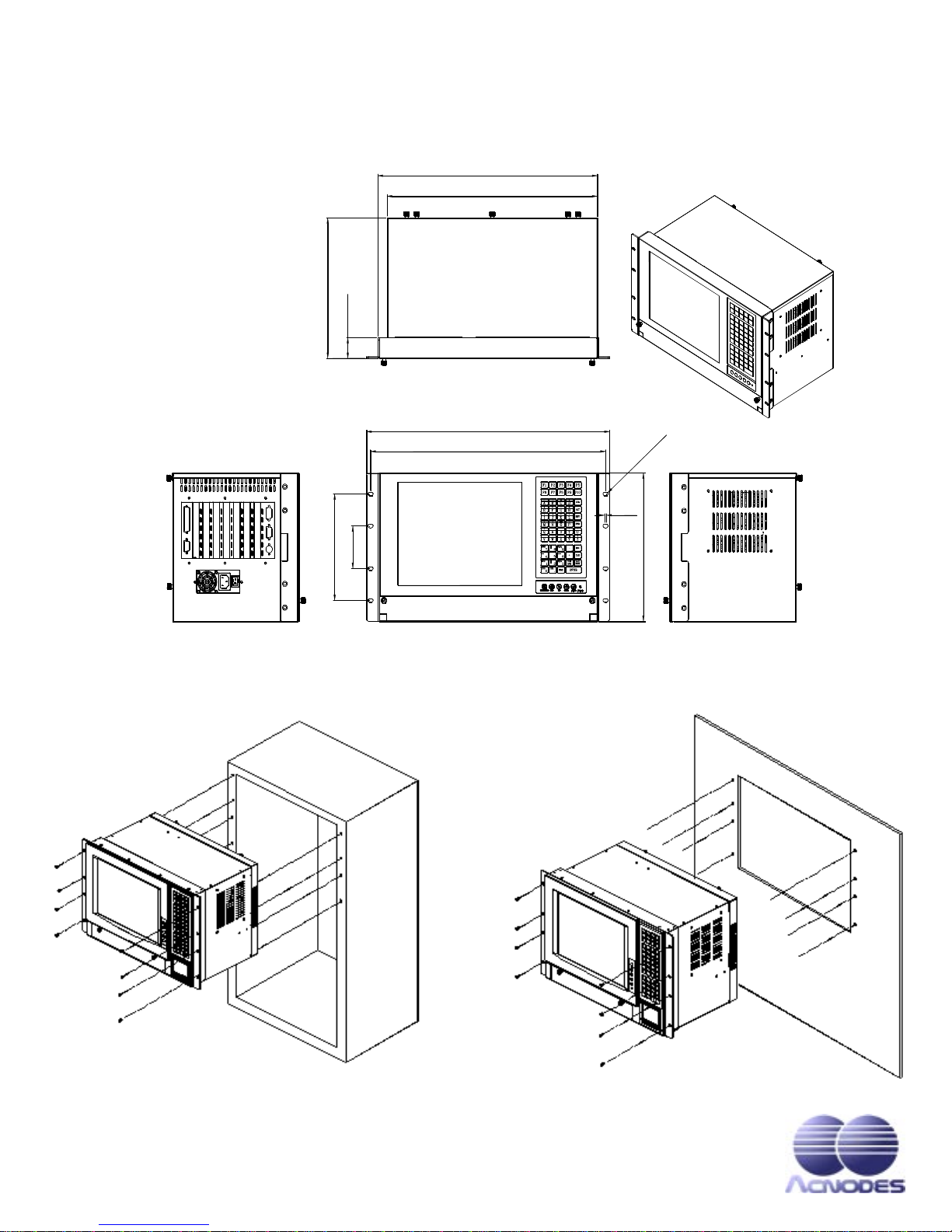

IV.

DIMENSION

IIV.

MOUNTING

Rack Mounting Panel Mounting

4.0

R3.00

466.0

266.00

251.30

37.00

435.15

482.0

417.00

190.50

76.20
