Acer AL1511 Manual de usuario

Table of Contents

Precautions .....................................................................................................................2

Package contents ............................................................................................................2

Installation instructions.................................................................................................3

Assembling the Monitor.....................................................................................................................3

Detaching the Monitor .......................................................................................................................3

Adjusting the Viewing Angle.............................................................................................................3

Connecting the Devices......................................................................................................................3

Switching the Power ..........................................................................................................................4

Adjusting display settings..............................................................................................5

External Controls ...............................................................................................................................5

OSD options ....................................................................................................................6

OSD Menu .........................................................................................................................................6

Troubleshooting .............................................................................................................8

General specifications ....................................................................................................9

Precautions

 The monitor may be damaged if placed too near a source of heat. Be aware of the

location of radiators, cookers, open fires etc.

 Do not cover the slots and openings on the back or top of the cabinet as the

monitor requires ventilation. The monitor should be located in a well-ventilated

room to prevent the possibility of overheating.

 Do not allow sharp objects such as knives, pens, or pencils near the screen. If such

objects touch the screen, the LCD panel will be permanently scratched.

 When cleaning this monitor, disconnect it from the electric socket to avoid any

danger of electrocution. A soft, lint-free cloth should be used to clean the

outside of the monitor. A cloth very slightly moistened with a mild detergent

solution will clean stubborn stains. Keep liquids away from the display screen,

including sprays. Do not spray liquid directly - it is best to lightly spray on to a

cloth and wipe. If liquid gets inside the monitor it can cause electrical shock

and/or damage to the unit.

 If you encounter a problem, please check the "Troubleshooting" section first. If

this does not resolve the problem do not attempt to repair the monitor by yourself;

opening or removing covers can lead to injury or death through electrocution

among other hazards. Please contact a qualified engineer if you find the

troubleshooting section does not help.

Package contents

LCD Monitor

(Speaker optional)

Power Cord

Audio Cable

(Optional)

User Manual (CD)

Quick Start Guide

Installation instructions

Assembling the Monitor

acer

1. Position the monitor on top of the stand. 2. Connect the stand into the neck of the monitor

along the track.

Detaching the Monitor

If you need to repackage the monitor, please separate the monitor and base, and restore them to

the carton. To detach the monitor:

1. Unplug the AC power cord to make sure the power is off.

2. Pull the 4 hooks on bottom side of the base and hold.

3. Separate the monitor and base and put them into carton.

Important

First, find a clean, flat surface to place the monitor after removing it from the stand. Place a clean

dry cloth under the monitor to protect it further.Pull the monitor slightly up and away from the

stand.

Adjusting the Viewing Angle

The viewing angle of the monitor ranges from -5°~20°.

Connecting the Devices

Caution:Make sure that the computer and the monitor are both disconnected from the

power supply.

Audio

VGA

AC Audio

VGA

Power Code Attach the monitor to the power cord which should then be inserted

into a properly grounded electric socket.

VGA Cable

(Attached)

Connect the signal cable to the VGA output socket of the graphics

card on the computer. Then tighten the thumbscrews on the connector.

Audio cable

(Optional)

Connect the audio input socket of the LCD monitor and the computer

by means of the audio cable.

WARNING:The D-Sub 15 pin plug of the VGA cable is trapezoid in shape. Make sure

the shape of the plug matches the shape of the socket it is inserted into, and

that none of the pins are bent or otherwise damaged.

Switching the Power

First, switch the power on to the monitor, then switch the power on to the computer. When you

see the LED on the power button go green, this indicates the computer is ready for use. Allow

about 10 seconds for the video signal to appear. If you do not see the green light on the power

button or a video signal, check the connections.

Adjusting display settings

External Controls

AUTO

If OSD is active, press to exit a selection in OSD. If OSD is

inactive, press and the monitor will automatically optimize the

position, focus and clock of your display.

2 <MINUS

If OSD is active, press to select or adjust OSD options. If OSD is

inactive, press once, then press the buttons marked < or > to adjust

the volume.X

3 >PLUS

If OSD is active, press to select or adjust OSD options. If OSD is

inactive, press once, then press the buttons marked < or > to adjust

the volume.Y

OSD

Function

Press to view OSD.

Press again to enter a selection in OSD.

5 POWER

Power on/off

Green: power on

Orange: in sleep mode

Notice: X& Yare only suitable for models with speakers.

ΑΥΤ Ο <

ΜΕΝΥ>

OSD options

Please refer to "External Controls" on Page 5.

To adjust the OSD settings:

1. Press the MENU button to open the OSD menu. Press again to enter a selection of 10

functions on OSD.

2. Use the buttons marked < or >, to highlight a control, then adjust the control to the desired

level.

3. When you have finished making all selections, press the AUTO button to exit the OSD.

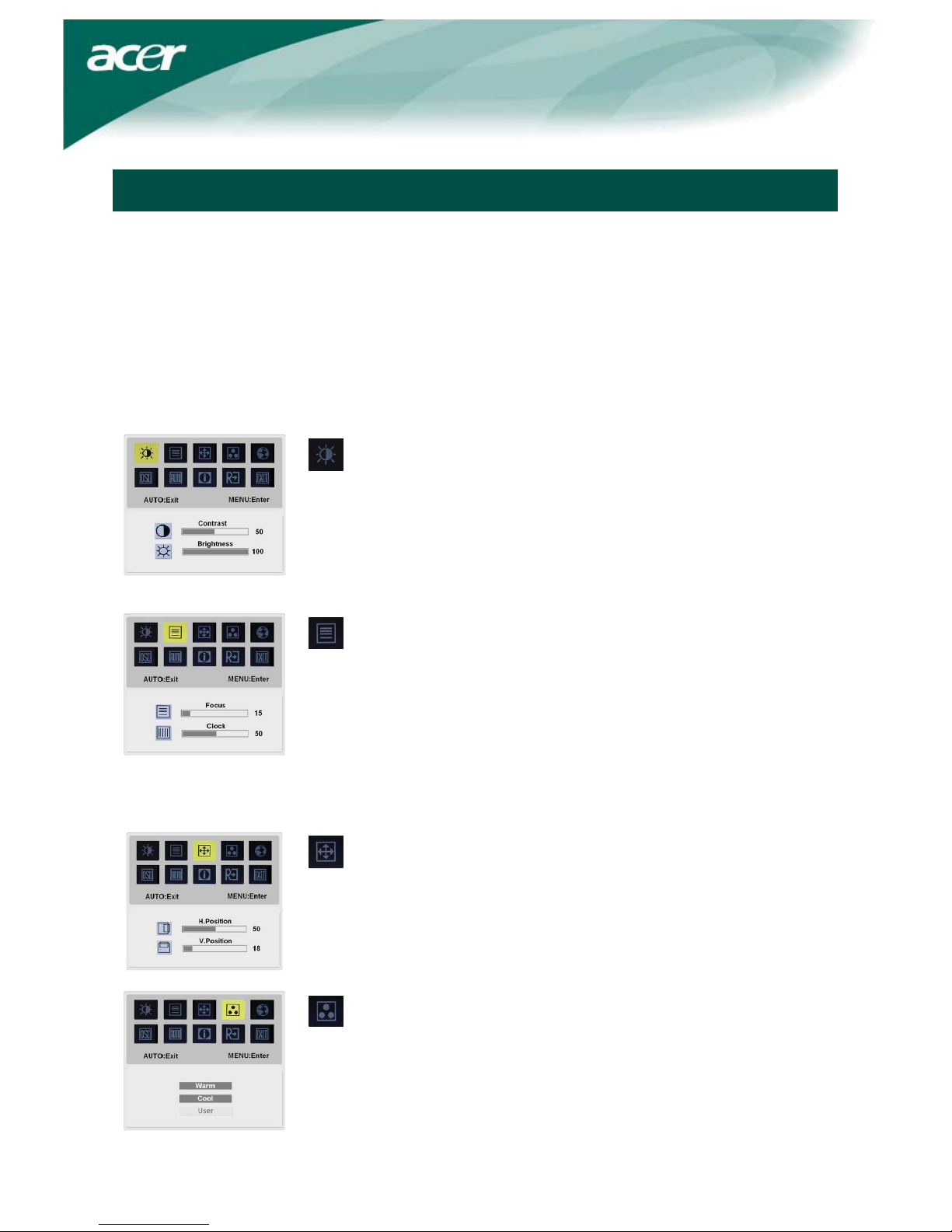

OSD Menu

Contrast:

This adjusts dark and light shades of color relative to each other to

achieve a comfortable contrast.

Brightness:

This adjusts the brightness of the picture on the screen.

Focus:

This removes any horizontal distortion and makes the picture clear and

sharp.

Clock:

If there are any vertical stripes seen on the background of the screen this

renders them less noticeable by minimizing their size. It also changes the

size of the horizontal screen.

H-Position:

This adjusts the horizontal.

V-Position:

This adjusts the vertical.

COLOR:

There are three ways of adjusting color:

Warm (Reddish white)

Cool (Bluish white)

User defined:

You can adjust the colors red, green and blue to the intensity you desire.

LANGUAGE:

Select the OSD menu language from

English, German, Spanish, Russian, Traditional Chinese, French, Italian,

and Japanese.

OSD SETTING:

This changes the position of the OSD window on the screen and staying

time.

Auto Config:

System runs auto-configuration.

INFORMATION:

This shows brief information on the screen.

Reset:

Recall to default settings.

Exit:

Exit from OSD.

Troubleshooting

Problems Possible Solutions

Power LED is not

• Check to see if the power switch is in the ON position.

• Ensure that the Power Cord is connected.

No Picture • Check to see if the power switch is in the ON position.

• Ensure that the Power Cord is connected.

• Ensure the video cable is securely connected to the back of the monitor

and the computer.

• Move the mouse or press any key on the keyboard to bring the monitor

out of "active off" mode.

Picture shows

inappropriate colors

• See "Color Adjustment" to adjust RGB color or to select color

temperature.

Picture bounces or a

wave pattern is

present in the


• Move or switch off electrical devices that may be causing interference.

• Inspect the monitor's video cable and ensure that none of the pins are

bent.

Image is not sized

or centered properly

• Press select/auto key and the monitor will automatically optimize the

position of your display.

• See "Position adjustment".

Caution: Do not attempt to service the monitor yourself or open the computer yourself.

Please refer all servicing to qualified service personnel if the problems cannot

be solved in "Troubleshooting" section.

General specifications

Item Specification

LCD Panel

Display 15-inch Flat panel active-matrix TFT LCD

Max resolution XGA 1024×768 pixels

Pixel Pitch 0.297 mm

Color 16.2M

Brightness 250 cd/m² (Typical)

Contrast Ratio 350:1 (Typical)

Response Time 8ms +17ms /25ms (Tr+Tf / typical)

View Angle of Horizontal 70° / 70°

View Angle of Vertical 65° / 60°

External Controls

Power Button ON / OFF

Control Buttons Auto, <, >, MENU

OSD Function

Contrast /Brightness Contrast / Brightness

Focus/Clock Focus / Clock

Position Position

Color Color

Language Language

OSD setting OSD Setting

Auto config Auto config

Information Information

Reset Reset

Exit Exit

Video Interface

Video Analog 0.7V

Sync TTL (+ / -)

Audio (Optional) 1W x 2

Plug & Play DDC2B

Power

Power Source 100~240V AC, 50/60 Hz

Power consumption during

normal operation < 40W

Power consumption during

active off operation < 1W

Dimension and Weight

Dimension (W×H×D) 344 × 361.2 × 149.8 mm (with stand)

344 × 358.6 × 98 mm (without stand)

Weight (Net/ Gross) 2.6 Kg / 3.8 Kg
