User’s Guide 1

AcerView 34e (14”monitor, 13.1”viewable image)

Installing the Monitor

Product Package

Open the shipping carton and check the contents. If any item is missing or damaged,

contact your dealer immediately. The package should include the following items:

ŸColor monitor ŸPower cord ŸUser‘s guide

ŸSwivel base ŸSignal cable

Installing the Swivel Base

Follow these steps to install the swivel base:

1. Turn the monitor on its side.

2. Insert the pegs on the swivel

base into the cavities at the

bottom of the monitor. Push

on the swivel base until the

latch clicks shut.

Installing the Monitor

Follow these steps to install the monitor:

This monitor is equipped with a universal power supply (90-264

VAC) . Before connecting cables, turn OFF the monitor.

Plug the 15-pin D-sub signal cable to the video signal

connector at the rear of the system.

Connect the power cord.

2User’s Guide

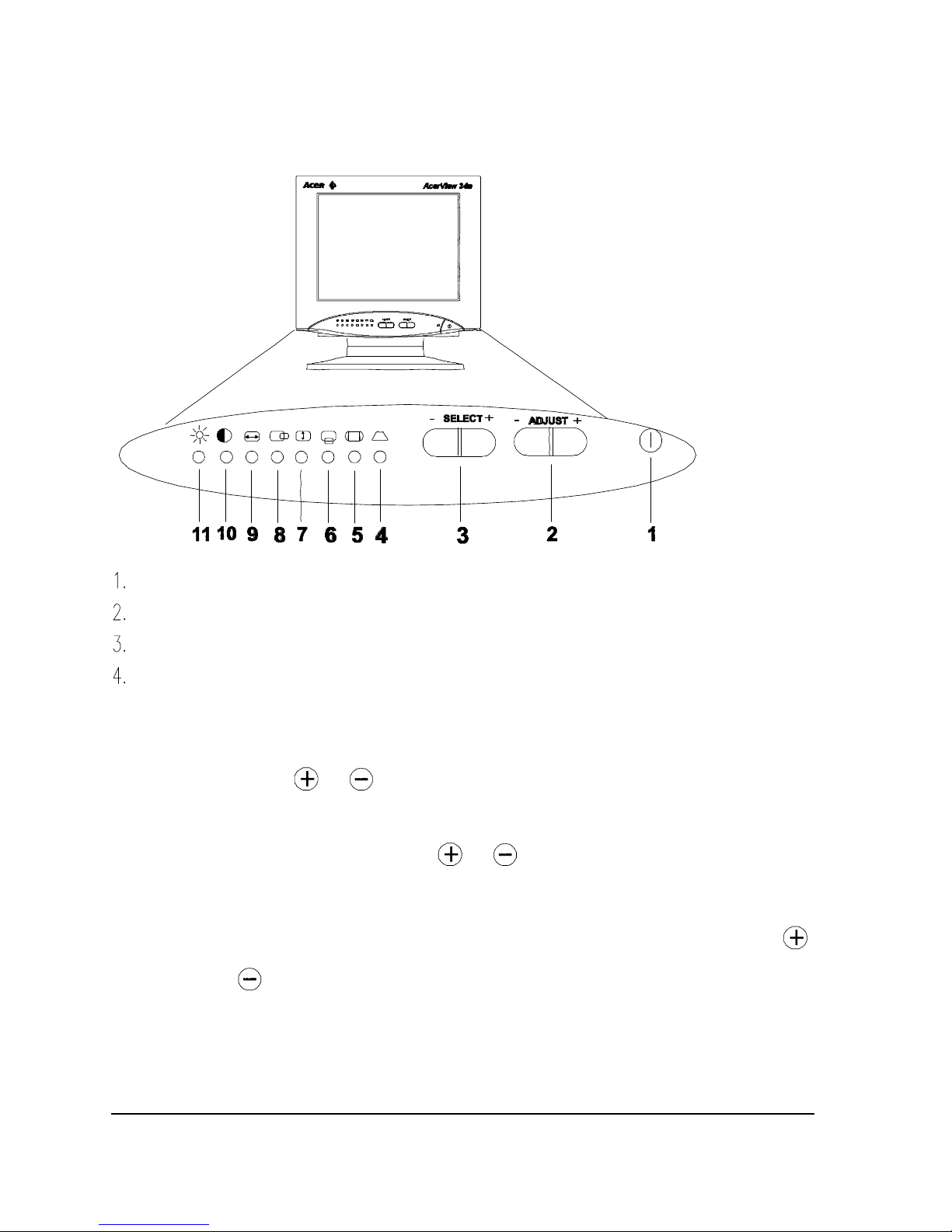

Control Functions

The monitor digital control functions are located on the front panel. Their description

are shown in the figure below.

Power Switch 5. Pincushion 9. Horizontal Size

Adjust 6. Vertical Center 10. Contrast

Select 7. Vertical Size 11. Brightness

Trapezoid 8. Horizontal Phase

Select / Adjust

Press the SELECT or button to cycle through the adjustment options to

choose H-Phase, H-Size, V-Center, V-Size, Contrast, Brightness, Trapezoid, and

Pincushion. And then press ADJUST or button to change the settings.

Reset

Reset all settings to factory defaults by pressing both function keys of SELECT

and ADJUST .

User’s Guide 3

Display Modes Memory

Our microcontroller feature has the memory capacity to store 24 different display

modes, divided into two parts: 16 modes for the user setting area and 8 factory preset

display modes

Power Saving Feature

This monitor’s power saving feature complies with VESA power saving modes.

Specifications

Picture tube

Size:

Dot pitch:

Surface/transmission:

14-inch (35.5 cm) diagonal

0.28 mm

Non-glare/semi-tinted

Maximum viewable size 13.1-inch (33.3 cm) diagonal

Video input 15-pin, D-sub connector, analog (positive)

Bandwidth 65 MHz

Display area 260 mm x 195 mm (H x V)

Power supply

(Universal)

Input voltage:

Consumption: 90V~264V / 47~63 Hz

85 watts maximum

External controls Power switch, brightness, contrast, adjust,

select, pincushion, V-size, V-center, H-size, H-

phase, trapezoid, reset

Horizontal frequency 30 ~ 54 KHz

Vertical frequency 50 ~ 120 Hz

Dimensions (with stand) 352 mm x 356 mm x 378 mm (W x H x D)

4User’s Guide

Ambient temperature

Operating:

Nonoperating: 10°C ~ 40°C

-40°C ~ 60°C

Humidity

Operating:

Storage:

20% ~ 90%

10% ~ 90%

X-Radiation DHHS, PTB

Regulatory

Compliance FCC-B, UL, CSA, BZT-B, CE, TÜV, D.N.S.F,

VCCI, MPRII (Optional), ISO9241-3

Factory Preset Display Modes

Mode Resolution V. Frequency H. Frequency

IBM VGA 640 x 400 70 Hz 31.50 KHz

IBM VGA 640 x 480 60 Hz 31.50 KHz

VESA VGA 640 x 480 75 Hz 37.50 KHz

SVGA4 800 x 600 75 Hz 46.88 KHz

UVGA1 1024 x 768 60 Hz 48.30 KHz

VESA VGA 640 x 480 72 Hz 37.86 KHz

SVGA2 800 x 600 60 Hz 37.88 KHz

SVGA3 800 x 600 72 Hz 48.09 KHz

FBesides above factory preset display modes, this monitor can display

the horizontal frequency from 31KHz to 54KHz. And the manual

alignment will be needed in some cases out of preset modes.
