Abocom WBD512 Manual de usuario

1-1

USB 802.11b Wireless LAN Adapter

M73-APO01-700

Installation

Install the Driver & Utility

Note: Always remember to install the Driver

& Utility before you plug USB cable into the

PC’s USB port.

In Windows 98SE/ME

For Windows 98SE users: As you perform the

installation, have your system operating

CD-ROM at hand. You may be asked to insert

the OS CD-ROM for the system to download a

specific driver.

1. Insert the supplied CD-ROM into the

CD-ROM drive. Double click on Setup.exe to

install the Wireless LAN Driver & Utility.

2. In the Welcome screen, click Next.

3. Click Next; Windows will copy all the

necessary files to your system.

4. When Windows prompts you to restart your

computer, select Yes and click OK.

USB 802.11b Wireless LAN

1-2

In Windows 2000

1. In the Welcome screen, click Next.

2. Click Next; Windows will copy all the

necessary files to your system.

3. In the Digital Signature Not Found window,

click Yes to continue.

4. Restart your computer.

In Windows XP

1. In the Welcome screen, click Next.

2. Click Next; Windows will copy all the

necessary files to your system.

3. Click Continue Anyway to proceed.

USB 802.11b Wireless LAN

1-3

Install the Device

1. Plug the square end (Type B) of USB cable

into the adapter's USB port.

2. Plug the rectangle end (Type A) of USB cable

into the PC's USB port

3. After installing the Wireless USB Adapter,

Windows will automatically detect the new

device. Follow the on-screen instruction to

install.

Note for Windows 2000 users:

During the installation, when the “Digital

Signature Not Found” screen appears, click

“Yes” to continue.

Note for Windows XP users:

During the installation, when Windows prompt

you that this hardware has not passed Windows

Logo testing…, click Continue Anyway.

In Windows 98SE

1. Windows will auto-detect the 802.11b USB

Adapter and a “New Hardware Found”

window will show up.

USB 802.11b Wireless LAN

1-4

2. Once the “Please insert the disk labeled

‘Windows 98 Second Edition CD-ROM’,

and then click OK” window appears, click

OK.

3. Select the correct drive and click OK.

4. Windows will copy all the necessary files to

your system.

USB 802.11b Wireless LAN

1-5

5. Windows will auto-detect the 802.11b USB

Adapter promptly as the icon showed below.

In Windows ME

1. Windows will auto-detect the 802.11b USB

Adapter and a “New Hardware Found”

window will show up.

2. Windows will auto-detect the 802.11b USB

Adapter promptly as the icon showed below.

USB 802.11b Wireless LAN

1-6

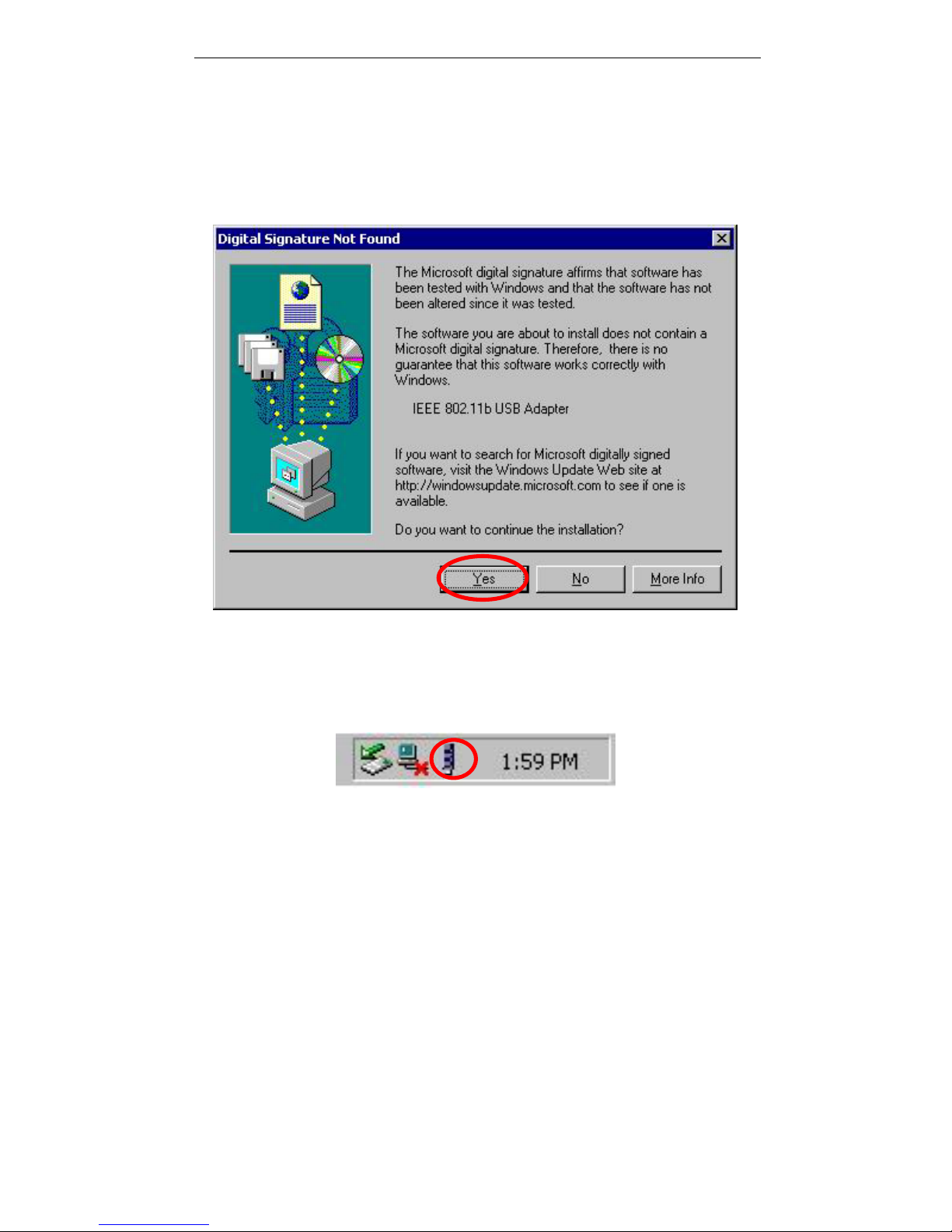

In Windows 2000

1. In Digital Signature Not Found window, click

Yes to continue.

2. Windows will auto-detect the 802.11b USB

Adapter promptly as the icon showed below.

In Windows XP

1. Windows will auto-detect the 802.11b USB

Adapter and a “Found New Hardware

Wizard” window will show up. Select “Install

the software automatically (recommended)”.

Click Next to continue.

USB 802.11b Wireless LAN

1-7

2. Wait and the Wizard will search for the

802.11b USB Adapter.

3. Click Continue Anyway to proceed.

USB 802.11b Wireless LAN

1-8

4. Click Next; Windows will copy all the

necessary files to your system.

5. Click Finish to complete the installation.

USB 802.11b Wireless LAN

1-9

6. Windows will auto-detect the 802.11b USB

Adapter promptly as the icon showed below.

Configuration

Once the driver and utility has been installed, and

the device is properly connected to your computer,

you can now start using this device with the default

settings. However, if you’d like to change settings

in the utility, you can refer to user manual saved in

the CD-ROM for the corresponding section to

perform more advanced configuration.
