Abit SG-80 Manual de usuario

SG-80 Series

(SG-80, SG-81)

Intel Pentium 4 System Board

Socket 775

User’s Manual

Rev. 1.00

The information in this document is subject to change without notice and does not

represent a commitment on part of the vendor, who assumes no liability or

responsibility for any errors that may appear in this manual.

No warranty or representation, either expressed or implied, is made with respect to the

quality, accuracy or fitness for any particular part of this document. In no event shall

the manufacturer be liable for direct, indirect, special, incidental or consequential

damages arising from any defect or error in this manual or product.

Product names appearing in this manual are for identification purpose only and

trademarks and product names or brand names appearing in this document are

property of their respective owners.

This document contains materials protected under International Copyright Laws. All

rights reserved. No part of this manual may be reproduced, transmitted or transcribed

without the expressed written permission of the manufacturer and authors of this

manual.

SG-80 Series

Table of Contents

Chapter 1. Introduction .................................................... 1-1

1.1. Features & Specifications....................................................... 1-1

1.2. Layout Diagram (SG-80)........................................................ 1-3

1.3. Layout Diagram (SG-81)........................................................ 1-4

1.4. Jumpers & Connectors Description........................................ 1-5

Chapter 2. Hardware Setup.............................................. 2-1

2.1. CPU Socket ............................................................................ 2-1

2.2. System Memory ..................................................................... 2-2

2.3. Connectors, Headers, and Switches ....................................... 2-3

2.3.1. ATX Power Connectors (ATX_POWER, ATX12V) 2-3

2.3.2. FAN Connectors (CPUFAN, SYSFAN, PWRFAN). 2-4

2.3.3. CMOS Memory Clearing Header (CCMOS) ........... 2-5

2.3.4. Front Panel Switches & Indicators Connection

Headers (PANEL1) ................................................... 2-6

2.3.5. Additional USB Port Connection Header (USB3,

USB4) ....................................................................... 2-7

2.3.6. Front Panel Audio Connection Header

(FPIO-AUDIO1)....................................................... 2-8

2.3.7. Accelerated Graphics Port Slot (AGP1)................... 2-9

2.3.8. Internal Audio Source Connectors (CD1, AUX1).. 2-10

2.3.9. Floppy Disk Drive Connector (FDC) ..................... 2-11

2.3.10. IDE Disk Drive Connectors (IDE1, IDE2)............. 2-12

2.3.11. Serial ATA connectors (SATA1, SATA2) ............... 2-13

2.3.12. External I/O Panel................................................... 2-14

Chapter 3. BIOS Setup...................................................... 3-1

3.1. About the Setup Utility........................................................... 3-1

3.1.1. The Standard Configuration ..................................... 3-1

3.1.2. Entering the Setup Utility ......................................... 3-2

3.1.3. Updating the BIOS ................................................... 3-3

User’s Manual

3.2. Using BIOS ............................................................................ 3-4

3.2.1. Standard CMOS Features ......................................... 3-4

3.2.2. Advanced BIOS Features ......................................... 3-7

3.2.3. Advanced Chipset Features .................................... 3-10

3.2.4. Integrated Peripherals ............................................. 3-14

3.2.5. Power Management Setup ...................................... 3-18

3.2.6. PnP/PCI Configurations.......................................... 3-20

3.2.7. PC Health Status ..................................................... 3-22

3.2.8. Frequency Control .................................................. 3-23

3.2.9. Load Fail-Safe Defaults Option.............................. 3-23

3.2.10. Load Optimized Defaults Option ...........................3-24

3.2.11. Set Password ........................................................... 3-24

3.2.12. Save & Exit Setup Option....................................... 3-25

3.2.13. Exit Without Saving................................................ 3-25

Chapter 4. Driver Installation .......................................... 4-1

4.1. Setup Items ............................................................................. 4-2

Appendix A. How to Get Technical Support ..................... A-1

SG-80 Series

Introduction 1-1

Chapter 1. Introduction

1.1. Features & Specifications

CPU

• Designed for Intel®90nm Pentium 4/Celeron D LGA775 Processors

with 800/533 MHz FSB

• Supports Intel Hyper-Threading Technology

Chipset

• SIS 661FX/ 964 (L)

Memory

• Two 184-pin DIMM sockets

• Supports DDR400 non-ECC un-buffered memory

• Supports maximum memory capacity up to 2GB

Graphic

• Integrated SIS Mirage Graphics GPU high performance 256-bit 3D

engine and 2D Accelerator

SATA 150 (Option)

• Serial ATA 1.5Gbps data transfer rate

• Support SW RAID 0/ 1/ JBOD

LAN

• Onboard 10/100 PHY

Audio

• On board 5.1 channels Audio CODEC

Internal I/O Connectors

• 1x AGP 8X/4X slot. 3x PCI slots

• 1x Floppy Port supports up to 2.88MB

• 2x Ultra DMA 133/100/66/33 Connectors

• 2x Serial ATA 1.5Gbps Connectors (Option)

• 2x USB 2.0 headers (Each header support two USB 2.0 devices)

• 1x FP-Audio header, 1 x CD-IN, 1 x AUX-IN

User’s Manual

1-2 Chapter 1

Back Panel I/O

• 1x PS/2 Keyboard, 1x PS/2 Mouse

• 1x Serial Port, 1x Parallel Port, 1x VGA connector

• 4x USB 2.0, 1x RJ-45 LAN Connector

• 1x Audio connectors (Line-out, Line-in, MIC-in)

Miscellaneous

• Micro ATX form factor (244mm x 244mm)

Product List

Model Chipset Features

SG-80 SIS 661FX + 964 10/100 LAN + SATA

SG-81 SIS 661FX + 964L 10/100 LAN

 All brand names and trademarks are the property of their respective

owners.

 This motherboard is customized for certain system configurations; and

may not fit system integration in all DIY ways. Before integrating this

product, please check ABIT web site for recommended device listings, or

contact sales/tech. support people.

 Specifications and information contained herein are subject to change

without notice.

SG-80 Series

Introduction 1-3

1.2. Layout Diagram (SG-80)

User’s Manual

1-4 Chapter 1

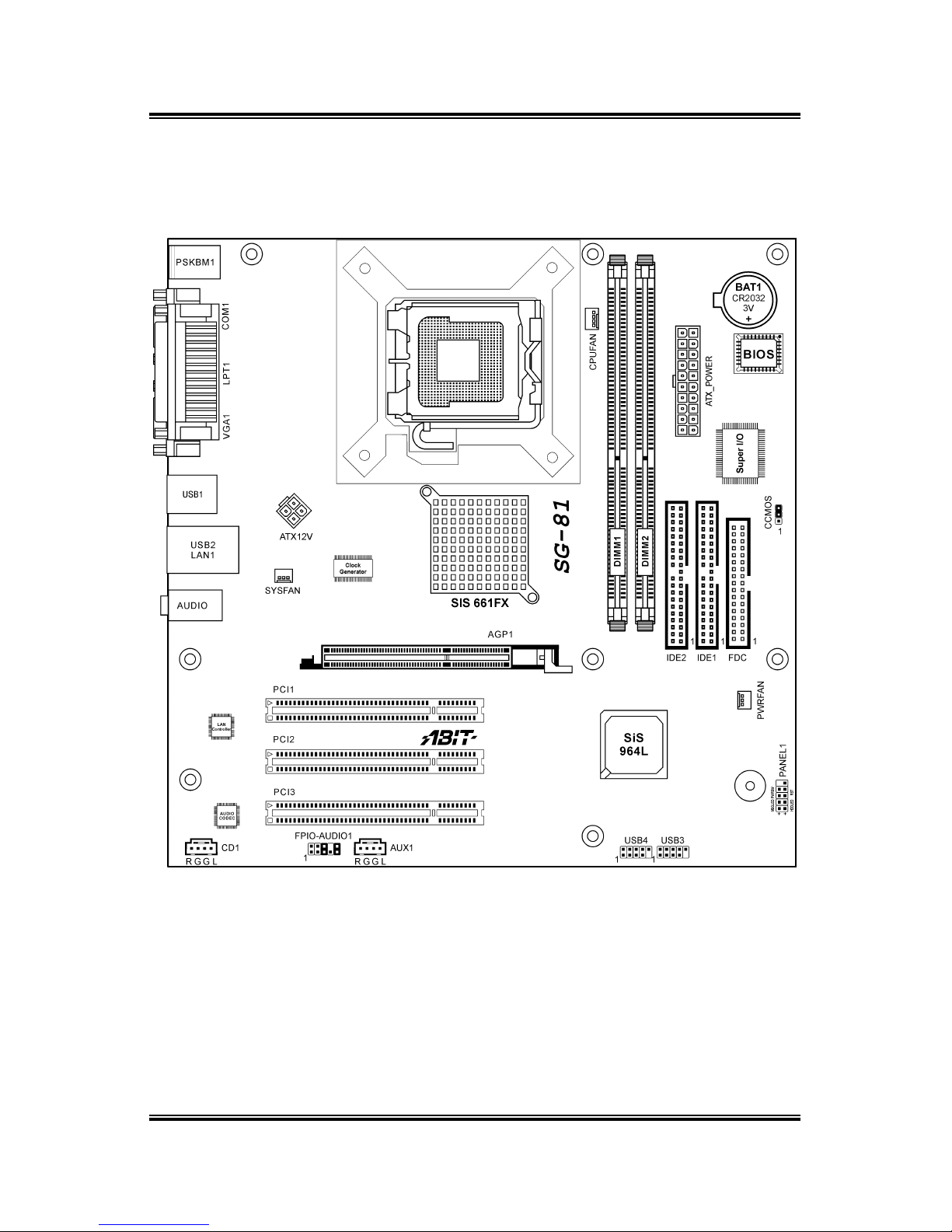

1.3. Layout Diagram (SG-81)

SG-80 Series

Introduction 1-5

1.4. Jumpers & Connectors Description

Jumpers Description Default Setting

CCMOS CMOS Memory Clearing Header Pins 2-3 Closed (Normal)

Connectors Description

AGP1 Accelerated Graphics Port Slot

ATX_POWER

ATX12V ATX Power Connectors

CD1/AUX1 Internal Audio Connectors

CPUFAN

SYSFAN/PWRFAN

CPU Fan Power Connector

System/Power Fan Power Connectors

DIMM1/DIMM2 DDR DIMM Slots

FDC1 Floppy Disk Drive Connector

FPIO_AUDIO1 Front Panel Audio Connection Header

IDE1/IDE2 Hard Disk Drive Connectors

PANEL1 Front Panel Switch Connection Headers

PCI1/PCI2/PCI3 32bit/33MHz PCI Slots

SATA1/SATA2 Serial ATA connectors

USB3/USB4 Additional USB Port Connection Headers

User’s Manual

1-6 Chapter 1
