Abilize Ranger MS01077 Manual de usuario
Product Code: MS01077
Instruction Booklet
Introduction
Important Precautions
Identication of Parts
Charging the Batteries
Disassembling your Scooter
Troubleshooting
Caution
Safety Information on
Electromagnetic Interference (EMI)
Specications
Warranty
Table of Contents
2
3
4
8
9
10
11
12
14
15
01
Thank you and congratulations on purchasing your new Abilize Mobility Scooter.
It is designed to provide you with transportation ability indoors and outdoors.
We pride ourselves on providing safe and comfortable products. Our goal is to ensure your
complete satisfaction. We sincerely hope you enjoy your Abilize Mobility Scooter.
Please read and observe all warnings and instructions provided in owner’s manual before
you operate the various functions of this scooter. Also, please retain this booklet for future
reference.
IF YOU HAVE ANY QUESTIONS, YOU CAN CONTACT:
UK Authorised Dealer
CareCo UK Ltd
Hubert Road
Brentwood
Essex
CM14 4JE
Tel: (+44) 01277 237001
Information of European Representation
EMERGO EUROPE
Prinsessegracht 20
2514 AP, The Hague
The Netherlands
02
03
• Only one person at a time can ride the Scooter.
• Maximum load is 181KG / 400 lbs.
• Turn key off before getting on or off.
• Always drive carefully and be aware of others using the same area.
• Always use pedestrian crossings wherever possible. Take extreme care when crossing roads.
• Do not drive on slope exceeding 9 degrees, and take extreme care when turning on a slope.
• Do not use full power when turning on a sharp corner.
• Take great care and drive in a low speed when reversing, riding downhill or on an uneven
surface, and climbing curbs.
• Please use the lowest speed when driving through a descending road or uneven terrain. If
speed is too fast, leave your hands off the handle bar and let the scooter stop. Make sure you
are safe and start again.
• The weight capacity limit can be different depending on ramp degree.
• A slow speed must always be used when ascending, descending or traversing a slope or
incline and also on uneven terrain, ramps and soft or loose surfaces, such as gravel or grass.
• To prevent any danger, do not turn around at high speed while ascending or descending
a ramp.
• Scooter may not operate well in high humidity.
• Do not leave the powered scooter in a rain storm of any kind.
• Direct exposure to rain or dampness will cause the scooter to malfunction electrically and
mechanically; may cause the powered scooter to prematurely rust.
• Never put scooter in neutral when driving on slopes.
• Follow trafc laws when riding outside.
• Do not sit on the scooter if taking on moving transport vehicles such as trains.
04
Before attempting to drive this scooter on your own, it is important that you familiarise
yourself with the controls and how to operate them.
Figure 1 - Front View
Figure 2 - Top Control Panel Figure 3 - Back View
Hand Brake Angle Armrest
Adjustment
Rear Mirror
Left Turn
Indicator
Right Turn
Indicator
Power
Indicator
Headlight
Indicator
High Speed
Indicator
Wig Wag Captain Seat
Tiller Angle Adjustment Seat Back Angle
Adjustment
Rear Bag
Seat Adjustment Lever Rear Bumper
N-D Lever
Rear Indicator
Rear Reector
Anti-Tip Wheels
Please turn to the next page for more information.
Swivel Lever
Headlight
Indicators
Front Bumper
Tiller Storage Compartment
Side Reectors
- Clock
- Temperature
- Speedometer
- ODO
- Trip Meter
Function of parts:
Main key switch (A)
• Turn the key to the right to turn the scooter on.
• Turn the key to the left to turn the scooter off.
CAUTION: Always ensure that the scooter is
switched off before getting on or off the scooter
and before removing any items from the scooter.
CAUTION: Turning the scooter OFF whilst driving
will bring the scooter to an abrupt stop.

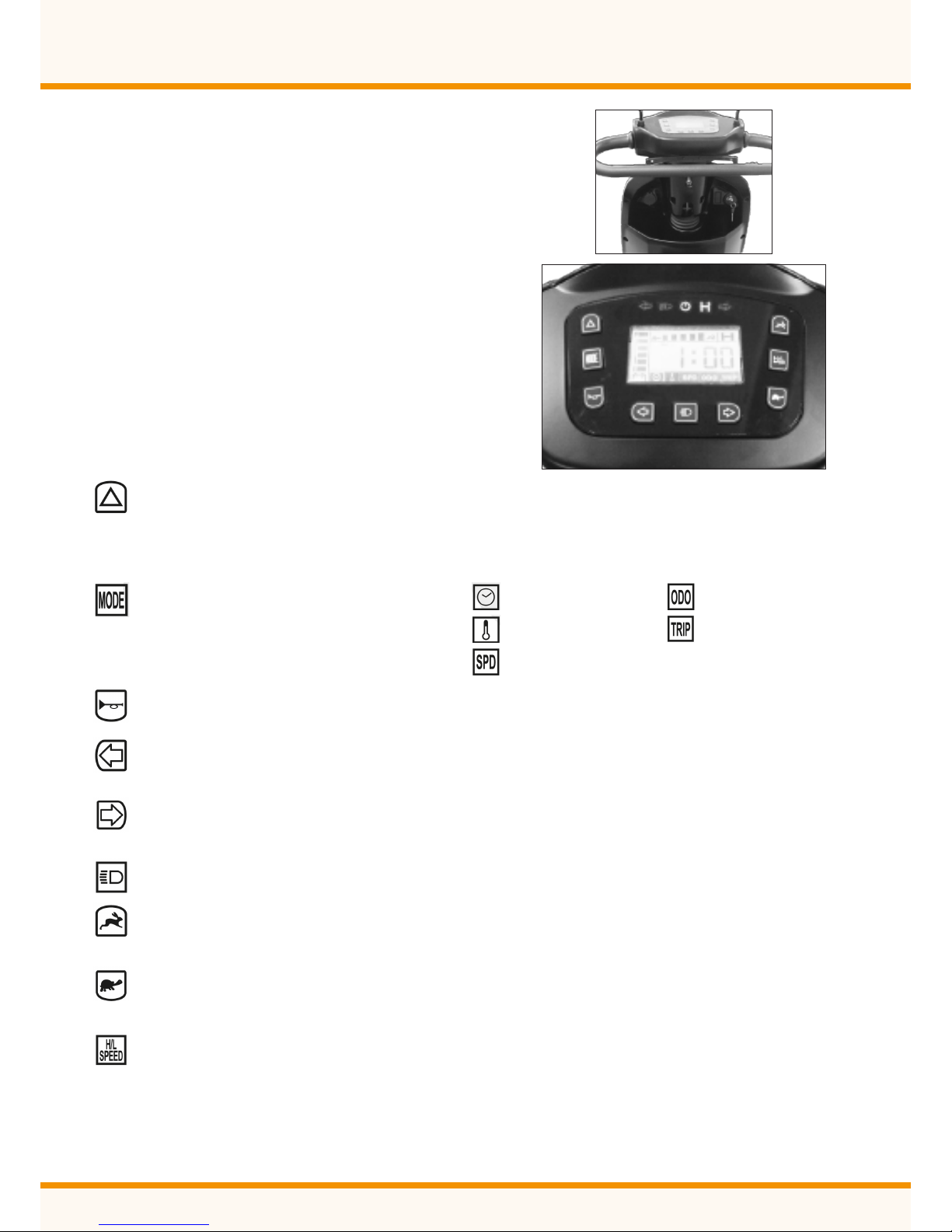

Top Control Panel Symbols and meanings:
-Hazard light (B): Switch on by pressing once, and off by pressing a second time. When
you press once the right and left lights and parking indicator will start to ash, and warning
tones will sound. The hazard lights will continue to ash even of the key is switched off.
The only way to stop the lights and sound is to press the hazard button a second time.
-Change mode by pressing once (C):
- Press the horn button (D) once to sound warning tone when necessary.
- ‘Left Turn Signal (E) : Press the Left Indicator button once to activate the front and rear
indicators and warning sounds. Press the button a second time to switch the indicators off.’
- ‘Right Turn Signal (G) : Press the Right Indicator button once to activate the front and rear
indicators and warning sounds. Press the button a second time to switch the indicators off.’
- ‘Headlight (F): Press headlight button once to switch on and a second time to switch off.’
- ‘Acceleration (H): Press acceleration button once to increase speed - option of 5 speeds
available.’
- ‘Deceleration (J): Press deceleration button once to decrease speed - option of 5 speeds
available.’
- ‘Hi/Lo Button (I): Press H/L Speed button once and the high/low speed indicator light
will come on which means you are driving in high speed mode. Press a second time and
the light will go out which means you are driving in low speed mode. (Hi/Lo speed will vary
depending on your current speed settings).’
05
A
B H
C I
D
E F G
J
Tiller Storage Compartment (K):
Provides you spacious room for storage.
Hand Brake (L). Hold brake (L), when immediate stop is required.
CAUTION: If you have to brake in an emergency, simply release
the Throttle and hold the hand brake which will bring you to a halt!
Wigwag Lever Operation:
Pull the left-hand drive lever (M) carefully to travel forwards.
Pull the right-hand drive lever (N) carefully to travel in reverse.
(This can be reversed if required by local dealer.) Releasing both, engages automatic brake.
These are also your accelerators - The further you depress them, the faster you go. (Subject to the
position of the Rabbit / Turtle control).
CAUTION: Keep LCD display panel and Wigwag Lever dry. If panel and Wigwag Lever get
wet, allow to dry out before using.
Steering Adjustment:
Press angle adjustment (N)
down to achieve a comfortable
steering angle.
CAUTION: Do not make
adjustments whilst driving.
Ensure steering is at optimum
angle before and after use.
Seat Adjustment (P):
Pull the Seat Adjustment Lever (Q) to disengage the seat (P). Slide the seat forwards or
backwards into the required position. Let go of the lever (Q) again to lock the seat into its required
position.
CAUTION: Seat position should be set as far forward as is comfortable to prevent the
scooter tipping over.
CAUTION: Once on the scooter, sit rmly on the seat, do not stand on the foot rest as this
could cause the scooter to tip over causing damage.
Angle Armrest Adjustment (R):
Pull the lever (S) and adjust the armrest to the required angle.
CAUTION: Pull the armrest up
when getting on or off the scooter.
Do not hang heavy items on the
armrests as this could cause the
scooter to tip over. Basket
assembling and disassembling:
06
K
L
M
N
O
Q
R
S
P
Seat Swivel Adjustment:
Pull the lever (T) upwards to disengage and rotate seat (P) to required angle, Let go of the lever
(T) to lock the seat into its required position.
Seat Back Angle Adjustment:
Pull the lever (U) upwards to adjust
Pull the lever (U) upwards to adjust
backrest’s angle, then release the
lever when adjusted to required
position, then release the lever when
adjusted to required position.
CAUTION: For safety reasons the backrest’s position must remain vertical before driving.
Seat Height Adjustment:
1. Remove seat (P) and rear shroud (Z).
2. Remove screw, nut and washer from seat post (V).
3. Adjust seat post (V) to desired height, and attached tightly with screw, nut and washers.
4. Then assemble the rear shroud (Z), seat (P) back to its original position.
Seat Electrical Lifter (Optional):
1. Press seat lifter button lightly (W) to raise the seat. Press lightly, to lower the seat.
CAUTION:
• Do not operate this function on a slope, or in motion or under unstable condition.
• The main purpose of this function is to assist you to reach certain height.
• Seat’s position must remain at the lowest before driving.
• Do not set N-D lever at N, before setting the seat at lowest position.
• Please keep the center of gravity of the scooter in the middle, to prevent the scooter
tipping over.
N-D Lever Adjustment:
When scooter has stopped or is
experiencing problems, press the
unlocking knob on the N-D lever (X).
Push the N-D lever forwards this
will allow you to push the scooter
by hand.
CAUTION: Freewheel operation is only recommended on at surfaces, never on slopes.
Never leave your scooter on a slope with its engine switched off. Always switch the engine
on immediately after pushing the scooter.
CAUTION: The scooter won’t operate if it is
set at (N) position, to restore to it’s normal status,
you must switch the power off and adjust to (D)
position, then switch the power on.
07
U
T
P
V
W
P
D N
X
V
Proportion Speed Reduction:
1. The scooter is equipped with proportional speed reduction. It will automatically reduce speed
when encountering a corner, reducing speed corresponding to the angle of turn.
2. For safety reasons, when pushing the scooter by hand, if the pre-determined speed is
exceeded, the controller automatically switches on and brakes the scooter.
CAUTION: Avoid shifting your center of gravity as well as abrupt changes of direction when
the scooter is in motion.
CAUTION: Reduce speed before negotiating corners! Only accelerate when you have
nished turning the corner!
Tie-Down Hook:
To enable you to transport your scooter safely and
securely there are 2 additional tie down hooks located
on the underside of the scooter.
CAUTION: When xed on a transportation system, N-D lever (X) must located at D position.
The scooter must not be occupied or used as a seat on a moving vehicle whilst being
transported.
Charging the Battieries:
Batteries must be charged before using the scooter for the rst time and should be recharged after
each days use.
CAUTION: Each country may supply different charger. The charging procedure may be
different from below. If you require more details, please contact your authorized dealer.
Be sure the scooter key is in the OFF position before charging.
Operating Instruction:
1. Always ensure the battery charger output voltage is the same as the connecting battery.
2. Plug in the power cord.
3. Connect the battery charger to the battery.
4. Start charging refer to charge levels indicated below.
Plug In:
Unplug:
Indicator:
1. Green Flash : Power On
2. Orange Flash : Pre-Charge
3. Orange : Charging
4. Green & Orange Flash : Charged 80%
5. Green : Full Charge
6. Red Flash : Defect
08
Y
E
A
C
B
D
09
Troubleshooting:
1. If green indicator is off :
• Check AC input. If it works normally, the battery charger may be defective.
2. If green indicator keeps ashing, and won’t give charging indication:
• Check if the battery is connected correctly.
• Check if the output connection is short or open.
• If the battery connection is correct, the battery charger may be defective.
3. If red indicator keeps ashing:
• Check if the battery connection is reversed.
• Check if the output connection is short or open.
• Check if the environment temperature is too low (0oC)
• If the red indicator still keeps ashing, the battery charger may be defective.
4. Charging indicator (orange) can’t turn to green:
• The battery may be defective please stop charging and have the battery replaced.
5. If the charging indicator (orange) turns green (fully charged) immediately:
• The battery may be in fully charged condition.
• If the battery is not fully charged, the battery may be defective.
CAUTION: The time required to recharge will vary depending on the depletion of the
batteries (75ah Battery Approx. 12 hours). Charging for longer than necessary will not harm
the batteries. They can not be overcharged.
CAUTION:
1. Before using the battery charger, read all instructions and cautionary markings.
2. Use the battery charger in a well-ventilated area.
3. To avoid the risk of injury, charge only lead-acid or gel cell type rechargeable batteries.
4. Please turn off the power after charging.
Disassembling your Scooter
Seat (P) Disassembling:
Pull the lever (T) upwards to disengage the seat (P), hold the
seat (P) rmly by the backrest and front edge and remove it
upwards from the scooter.
CAUTION: If the seat is difcult to remove, hold seat swivel lever (R), and then rotate the
seat to reduce resistance then pull up. Proceed with caution, if you need assistance, please
have some one to help you.
Rear Shroud (Z) and Batteries (C1) Disassembling:
1. Remove rear shroud (Z) upwards.
2. Unplug one battery connector (A1).
3. Release Velcro (B1).
4. Remove two batteries (C1).
P
T
A1
Z
Tabla de contenidos
Otros manuales de Scooter de Abilize
