AAT Max-e Manual de usuario

max-e

Translation of the original user's manual

The power kit for your wheelchair

with cable

CE-Declaration of conformity

The company AAT Alber Antriebstechnik GmbH herewith declares that the

products of the powered systems max-e are developed and produced in ac-

cordance with the current regulations of the European Community

93/42/EG, 2007/47/EG and 2006/42/EG.

This declaration loses all validity if an alteration of any kind not

approved by AAT Alber Antriebstechnik GmbH was made at any

one of the herein described devices.

Signature of the manufacturer:

Markus Alber

Managing associate

AAT Alber Antriebstechnik GmbH

The powered drive system max-e is being

tested according to the norm DIN EN

12184 at the Technical University Berlin,

testing and certifying facility for medical

products GmbH.

max-e

max-e_q1604_gb_12_2011

AAT Alber Antriebstechnik GmbH

Postfach 10 05 60 · D-72426 Albstadt

Tel. +49.74 31.12 95-0 · Fax +49.74 31.12 95-35

www.aat-online.de · info@aat-online.de

Table of contents

CE-Declaration of conformity ............ 2

Table of contents ................. 3

1 Introduction ........................ 4

1.1 Description of the product ............. 4

1.2 Technical data ................... 6

1.3 Delivery package .................. 7

1.4 Optional accessories ................ 7

2 Mounting an initial operation ................ 8

2.1 Brackets ..................... 8

2.2 Battery pack .................... 8

2.3 Hook in the max-e ................. 9

2.4 Attach the control unit ............... 11

2.5 Driving with the max-e ............... 11

2.6 Adjustment of the hand rest ............ 13

2.7 Swivel arm .................... 14

2.8 Anti-tilt support .................. 15

3Safety regulations / notification of potential dangers ..... 17

3.1 General information ................ 17

3.2 Technical requirements .............. 17

3.3 Operation ..................... 17

3.4 Environmental influences.............. 18

3.5 Driving ...................... 18

3.6 Special tips for driving ............... 18

3.7 Weather conditions................. 19

3.8 Transportation ................... 19

3.9 Condition of paths, walkways etc. .......... 19

4 Useful information ..................... 20

5 Control unit ........................ 21

5.1 Control unit .................... 21

5.2 Joystick ...................... 21

5.3 Display ...................... 22

6 Battery pack/Control unit .................. 24

6.1 General information ................ 24

6.2 Exchange the fuses of the battery pack ....... 26

7Trouble shooting and indication of malfunction ........ 27

7.1 Trouble shooting .................. 27

7.2 Indication of malfunction .............. 27

8Care, maintenance and recycling .............. 30

8.1 Different user ................... 30

8.2 Care ....................... 30

8.3 Maintenance.................... 30

8.4 Recycling ..................... 31

9 Warranty and Liability .................... 32

9.1 Warranty ..................... 32

9.2 Liability ...................... 32

max-e

1Introduction

With the max-e you transform your manual wheelchair easily and quickly

into a lightweight, fully functioning, powered wheelchair. Due to the directly

powered wheels of your wheechair the max-e accomplishes a permanent, ef-

ficient transfer of power while all advantages of a manual wheelchair remain

intact.

Max-e is appropriate for the application class A according to EN 12184

(Guidelines of the European Union). The range lies at 15 km instead of the

norm´s 25 km; however, with an extra set of batteries the range can be in-

creased to the required 25 km.

1.1 Description of the product

1.1.1 General survey

= Control unit

=Battery pack plus bag

=Wheel of the wheelchair including grip ring and toothed ring (20" or

24")

=Anti-tilt support (20" or 24")

=Brackets on the wheelchair

= max-e drive

max-e

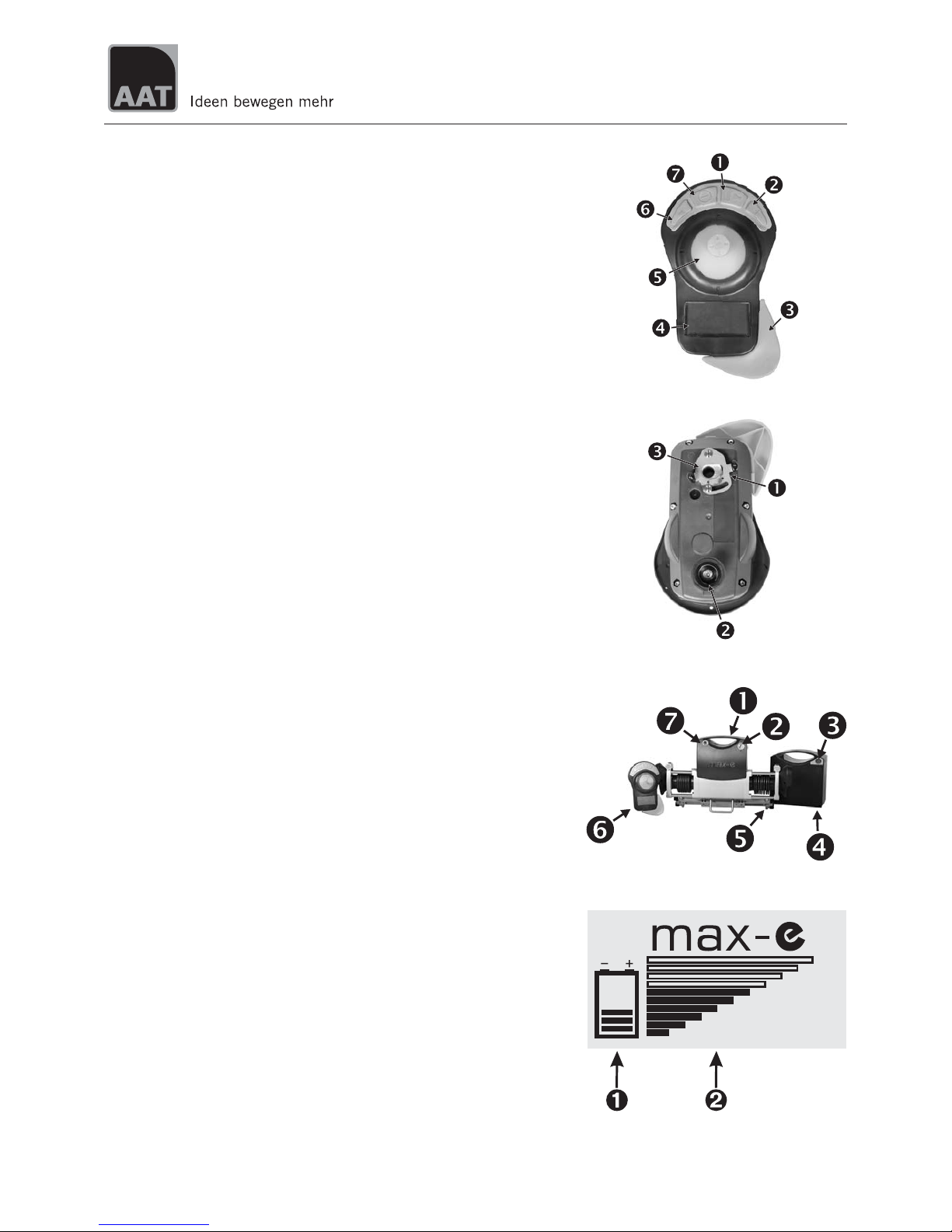

1.1.2 Control unit

= Horn

= Present speed control (fast)

= Hand rest

= Display

= Joystick

= Present speed control (slow)

= On/Off

1.1.3 Back side of the control unit

= Lock

= Entrance connecting cable

= Socket for the charging cable

1.1.4 Drive unit

= Drive

= Entrance connecting cable

=Exit of the power line and socket for the charging cable

= Battery pack

= Connection to the wheelchair

= Control unit

= Entry of the power cable at the max-e

1.1.5 Display (main screen)

= Display of the battery pack

= Speed

max-e

1.2 Technical Data

*Please always observe the limits stipulated by the wheelchair manufactu-

rer.

** The range applies to a person weighing 70 kg that drives on even ground.

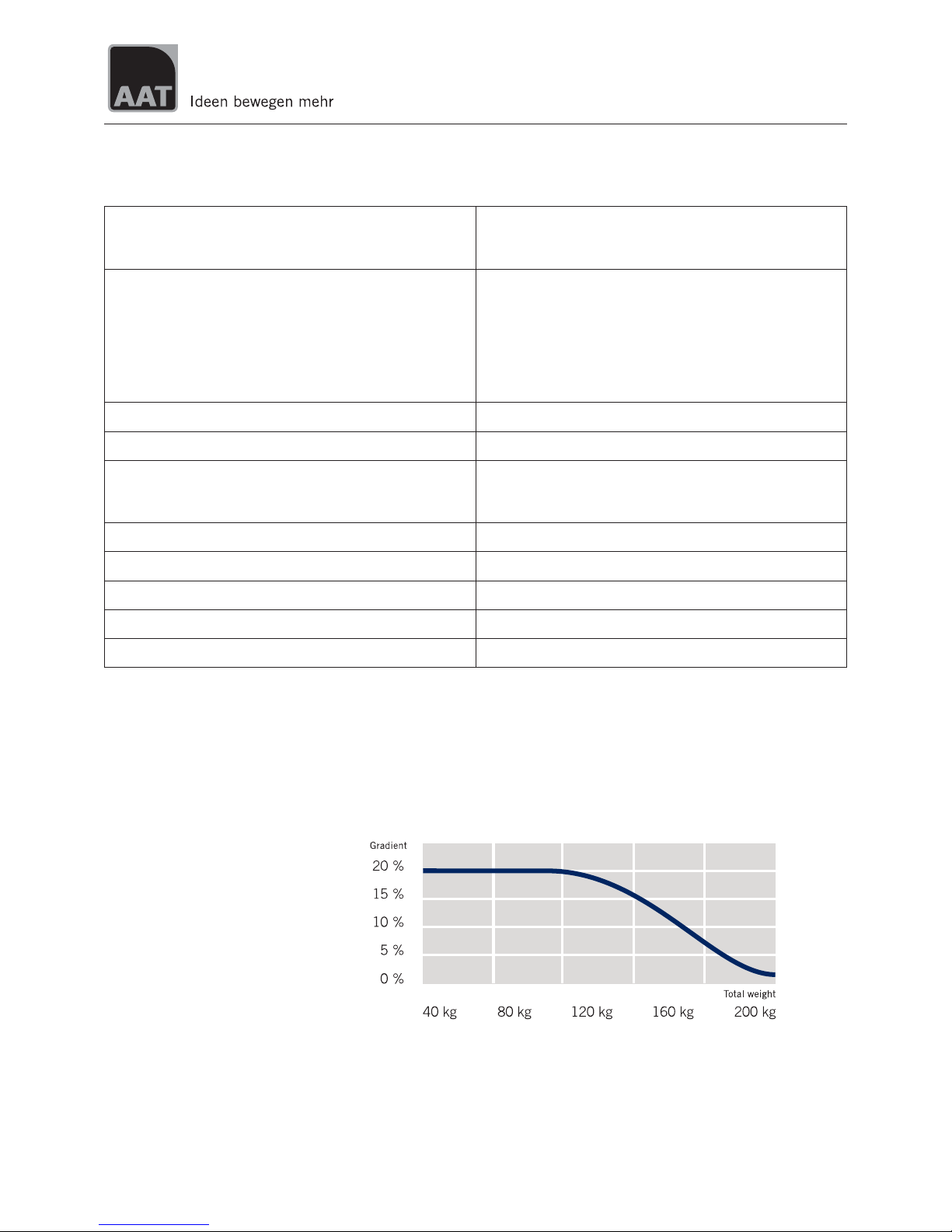

Diagram concerning weight and climbing capacity:

max-e

Measurements

height = 28 cm

width = 34,5 cm

depth = 14,5 cm

Weight

drive = 8,2 kg

battery pack = 10,2 kg

control unit = 0,4 kg

bag for the batteries incl. straps = 0,2 kg

charger = 0,3 kg

power cable = 0,2 kg

total weight = 19,5 kg

Limits concerning the attachment to wheelchairs possible at a seat width of 28 cm

max. total weight admitted 200 kg (person, wheelchair, max-e) *

Speed

continuously adjustable

6 km / hours forward

3 km / hours backward

Capacity with one battery charge up to 15 km **

Maximum slope upt to 20 %

Storage temperature / operation temperature - 20° C to + 60°C/-10°Cto+50°C

Battery pack 2 x 12V/16Ah

Direct current motor electronically commutated 24 V / 130 W

In the name of progress we reserve the right for technical and optical changes.

1.3 Delivery package

The standard delivery package contains:

=wheelchair wheels including grip ring and toothed ring (20" or 24")

= battery pack

= charger

= Cable for data transmission and power supply

= special control unit with fitting socket

= max-e power unit

...well as a power cable, battery bag, holding device for the control unit and

an operator’s manual (no picture).

In addition, you need brackets which must be fixed to your wheelchair .

1.4 Optional accessories

=spokes’ protection (available for 20" or 24" wheels)

=anti-tilt support (20" or 24")

=swivel arm

=voltage transformer for the car

1.4.1 Joystick options (optional)

=Holding device for the attendant´s control unit

=Palm control

=Ball (40 or 50 mm)

=Soft ball

=Special fixture for quadriplegics

max-e

2Mounting and initial operation

Max-e may only be operated in connection with a special holding device,

which must be fixed to the wheelchair.

These brackets (holding devices) must be mounted to the wheelchair exclu-

sively by AAT Alber Antriebstechnik or their authorized dealers.

2.1 Brackets

The holding devices or brackets are specially developed and adjusted to

each particular type of wheelchair. The brackets in this picture,right and

left may look different from the ones on your wheelchair.

FPlease make sure that the brackets are tightly secured on the chair befo-

re each use. Do not use the max-e if the screws are loose. In such case

contact your dealer immediately.

FPlease note that mounting the max-e to a wheelchair (depending on the

model) may result in restricting the adjustment of its seat or back rest.

FMounting the max-e to a wheelchair (depending on the model) may re-

sult in a change of the wheelchair’s measurements.

2.1.1 Attach and detach the wheels

There are full-floating axles in the centre of your wheelchair wheels. Press

the locking pin in the middle of the axle with your index finger to unlock the

system. Now you can take the wheel off.

Please remove one after the other.

To put the wheels back on proceed in reverse order.

2.2 Battery pack

Underneath your wheelchair’s seat there is a bag attached for the battery

pack. You slip the battery pack into the bag...

...and secure it with a Velcro strap.

max-e

2.3 Hook in the max-e

Carefully insert the max-e into the bracket on both sides.

FPlease insert the max-e with its wheelchair connections in a straight

line in reference to the brackets .

The device easily slides into the brackets by itself.

max-e

Now put the plug of the power cable into its socket on the max-e.

Afterwards you put the plug of the power cable into the corresponding so-

cket on the battery pack.

max-e
