A4Tech G3-230 Manual de usuario

2.4G RF Mouse

User Manual

Model: G3-230

www.a4tech.com

- 1 -

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1)

THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,

INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

Federal Communications Commission Requirements

The equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio

communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

zReorient of relocate the receiving antenna.

zIncrease the separation between the equipment and receiver.

zConnect the equipment into an outlet on a circuit different from that to which the receiver is connected.

zConsult the dealer or an experienced radio/TV technician for help.

THE CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID

THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired operation.

FCC Radiation Exposure Statement

The equipment complies with FCC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF)

Exposure Guidelines in Supplement C to OET65. The equipment has very low levels of RF energy that it is deemed to comply without testing of

specific absorption ratio (SAR).

Knowing the Product

Far Range Up to 15 Meters

X-Far Wireless range ensures more operation

freedom.

(Note: Actual operating distance may vary and

depend on working environments)

8 Gestures in Right Button

The mouse allows you get 8 functions on “Right”

button.

Battery Status Indicator

Aware of the battery power anytime with A4 Tech’s

uniquely designed “8 in Right” software

Hardware Installation

1. Pull out the nano-Receiver from

the bottom of mouse.

2. Plug nano-receiver into USB port of your

computer or notebook.

3. Insert the supplied battery, making sure that the positive (+) and negative (-) ends

of the battery match the polarity indicators inside the battery housing. and power will

be automatically on. Now you can use the mouse.

Power Management of the Mouse

1. To power on the mouse, press the power button for

approximate 3 seconds.

2. To turn off the mouse power, press the power button on

the bottom of the mouse till the LED light is off.

Note: The mouse can be awaked easily by moving the

mouse randomly if long time no using.

The wireless mouse is plug-and-play. No driver is required. If you would like to get more

function, please install the software (enclosed on the CD) first

Software Installation

1. Before installing the mouse software, please uninstall any previous installed

mouse software.

2. Insert enclosed CD to start installation.

3. Follow on-screen instructions to complete the installtion.

4. The icon will appear on your desktop, then you have successfully installed the

software.

5. To launch the software,

double click the icon on

your desktop or go to

Start—Programs—8 in

Right, then the icon will

appear in the taskbar at the

right corner of your screen.

Software Instructions

A. How to get 8 functions in right button of the mouse

From the “task pull-down” menu of each arrow direction, you can select mouse,

office sets, key combinations, multimedia and internet” 6 main function categories

and there are more than 30 different functions that are ready for your immediate

selection.

Task Pull-down Menu

B. How to Pair the X-Far Wireless Devices

The G5/G7/G9 mouse series have been preset the ID Code in the factory. But under the

circumstances you lose receiver or want to use with the other receiver in the same

product series, you need to refresh the ID Code before using it.

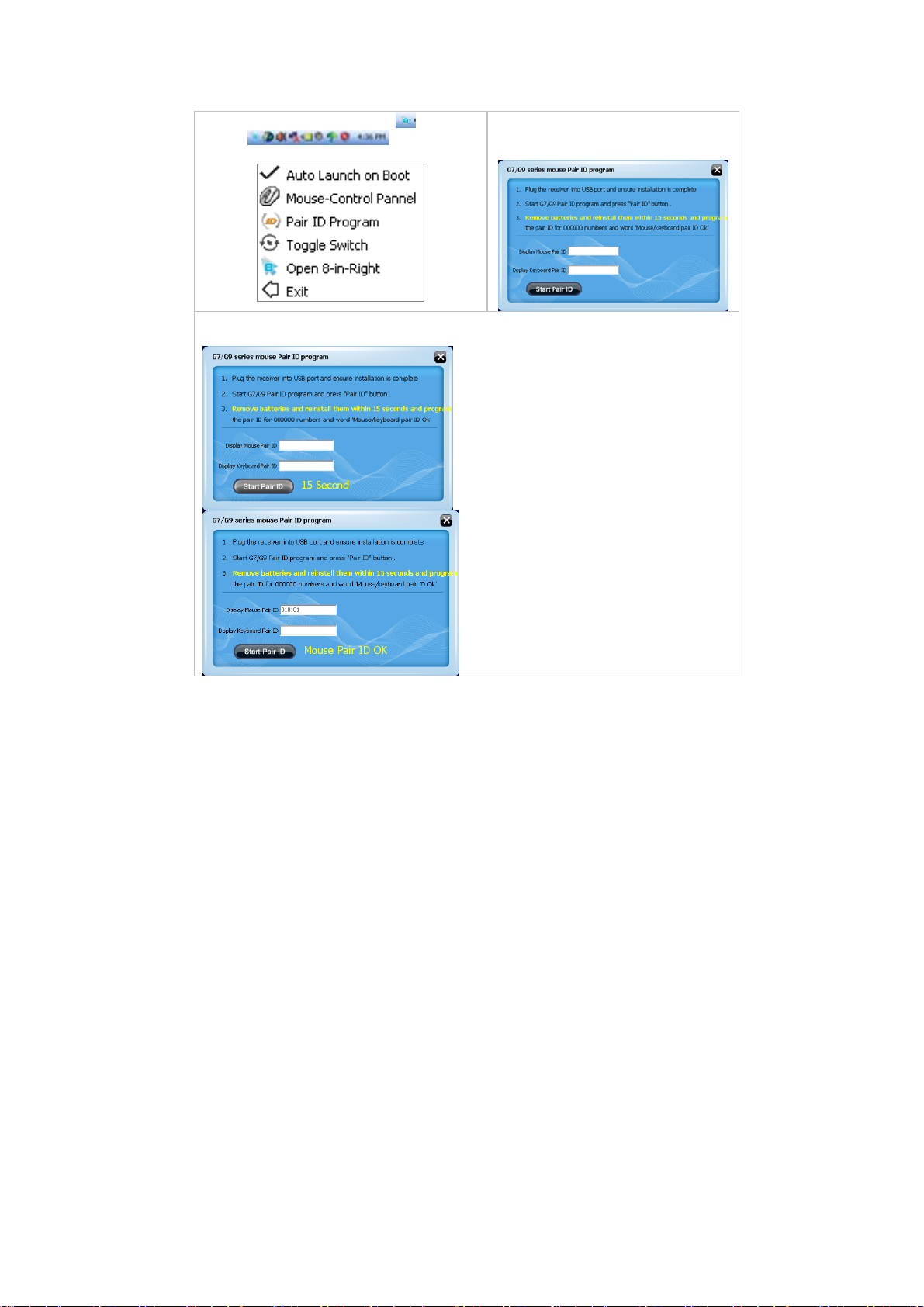

Step 1: Right click on the icon in the

taskbar and select

“Pair ID Program”

Step 2: Press “Start Pair ID” to

refresh ID Code.

Step 3: Remove the mouse batteries and insert again in 15 seconds，6 digits of

matching code will be displayed on the menu as shown “Mouse Pair ID OK”.

C. How to Indicate Battery Status

All of G7 series have Battery status

Indicator in the software, click “ ”in

the main menu of the software, then

the battery power status will be

displayed on the screen. It is

convenient that you can easily be

aware when the battery power is low

and change battery in time.

Note:There are four levels: 100%、

75%、50% and 25% respectively，if

the value is less than 25%, it is

recommended that you should

change the battery right away.

Notice: To ensure that your mouse sends and receives perfectly, please read below

instructions for your reference:

1. To avoid electromagnetic interference, place the receiver at least 8 inches (20 cm) away

from other electrical devices, such as the computer, the monitor or external storage

devices.

2. The operation distance depends on the working environment and can reach to 15

meters without any interference, to get optimal performance, please adjust the distance

between mouse and receiver according to different situations.

3. Avoid using the wireless mouse on a metal surface. Metals such as iron, aluminum, or

copper shield the radio frequency transmission and slow down the mouse’s response

time or cause the mouse to fail temporarily.

The radio frequency is 2.4GHZ, it is safe for our bodies, but please be cautious in using

cardiac pacemaker or other body auxiliary instruments.

Troubleshooting

If the mouse is not working:

1. Make sure the mouse is on.

2. Check battery and battery installation.

3. Check receiver installation.

4. Try another USB port.
