Overhead Projector 1800 Series
Illustrated Parts Breakdown
Mar 2007
3M™Overhead Projector 1800 Illustrated Parts Breakdown
© 3M 2007 2
Revision History
Original Issue date: 10/2001
The release date, revision level, pages changed and a description of the modifications are listed below.
Revision Page(s)
Changed Description
10/2001 All pages First edition released
1/2002 Figure 1 Added Light Shield Kit
6/2002 All pages Individual parts combined into modules and kits
8/2002 Figures 5, 8-14 Added Post Handle, Lamp Module kit content, OUS motor, and U.S.
Roll Film Kit.
6/2003 All pages New art and parts listings for kits, modules, and individual parts.
12/2004
All pages
Sec 4, Page 9
Sec 5 pg 10, 11,
Sec 7, pg 14
Sec 8, pg 16, 17
Sec 18,pg 29
Sec 19, pg 31
Appendix A
Figures & tables new layout.
New Arm Kit names and part nbrs.
New Arm section added for S/Ns above 18040828.
Added On/Off Button Kit to art.
New section for clipped-in glass.
New 120V Fan Motor name & part #
New 120V & 230V Fan Motors
New information added.
3/2007 All pages Part numbers updated
Copyrights
The 3M logo, and 3M are a trademarks of 3M Company. All other trademarks or registered trademarks are the property of the
respective company.
Important Notice
All statements, technical information, and recommendations related to the service, repair or operation of 3M products are
believed to be reliable, but the accuracy or completeness is not guaranteed and based on information provided to us. Before
implementation, you must evaluate them and determine if they are suitable for your intended application or situation. You
assume all risks and liability associated with such implementation.
Warranty; Limited Remedy; Limited Liability
3M’s product warranty is stated in its Product Literature available upon request. 3M MAKES NO OTHER
WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE. If this product is defective within the warranty period stated in the Product Literature, your
exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except where prohibited by law, 3M will not be liable for any loss or damage arising from this 3M product, whether
indirect, special, incidental or consequential regardless of the legal theory asserted.
3M™Overhead Projector 1800 Illustrated Parts Breakdown
© 3M 2007 3
Table of Contents
REVISION HISTORY...................................................................................................................................................2
TABLE OF CONTENTS................................................................................................................................................3
INTRODUCTION .........................................................................................................................................................4
QUICK REFERENCE PARTS INDEX..............................................................................................................................5
SECTION 0. MACHINE OVERVIEW.............................................................................................................................6
SECTION 1. INVERTED HEAD ASSEMBLY...................................................................................................................7
SECTION 2. OPEN HEAD ASSEMBLY.........................................................................................................................8
SECTION 3. CLOSED HEAD ASSEMBLY.....................................................................................................................9
SECTION 4. ARM ASSEMBLY (SERIAL NUMBER 18040827 AND BELOW,NORTH &SOUTH AMERICA ONLY).................11
SECTION 5. ARM ASSEMBLY (SERIAL NUMBER 18040828 TO 1877398)..................................................................12
SECTION 6. SQUARE POST WITH ARM ASSEMBLY (SERIAL NBRS.1877399 AND ABOVE)..........................................14
SECTION 7. RECTANGULAR POST MOUNTING HARDWARE.......................................................................................15
SECTION 8. TOP COVER ASSEMBLY (WITH TAPED-IN STAGE GLASS).........................................................................17
SECTION 9. TOP COVER ASSEMBLY (WITH CLIPPED-IN STAGE GLASS)......................................................................19
SECTION 10. BASE ASSEMBLY...............................................................................................................................21
SECTION 11. LAMP HOUSING (SINGLE ENX/FXL) ..................................................................................................23
SECTION 12. LAMP HOUSING (DUAL ENX/FXL).....................................................................................................24
SECTION 13. LAMP HOUSING (SINGLE FNT) ..........................................................................................................25
SECTION 14. LAMP HOUSING (DUAL FNT).............................................................................................................26
SECTION 15. LAMP HOUSING (DUAL EVD).............................................................................................................27
SECTION 16. LAMP ASSEMBLY...............................................................................................................................28
SECTION 17. COOLING FAN ASSEMBLY..................................................................................................................29
SECTION 18. ROLL FILM KIT..................................................................................................................................30
SECTION 19. WIRE JUMPERS (ENX AND FXL) .......................................................................................................31
WIRE JUMPERS (ENX AND FXL), CONTINUED..........................................................................................................32
SECTION 20. WIRE JUMPERS (EVD AND FNT).......................................................................................................33
SECTION 21. PLASTIC PARTS KIT ...........................................................................................................................35
SECTION 22. SMALL ELECTRICAL PARTS KIT...........................................................................................................35
APPENDIX A–1800 SPECIFICATIONS.............................................................................................................36
IMPORTANT NOTICE
3M reserves the right to sell or furnish NEW OR RECONDITIONED PARTS.
New and reconditioned parts are covered by the same 3M new parts limited warranty.
3M™Overhead Projector 1800 Illustrated Parts Breakdown
© 3M 2007 4
MFG Code
Letter (year) Digit (quarter)
K 2001 1 Jan-Mar
L 2002 2 Apr-Jun
M 2003 3 Jul-Sep
A 2004 4 Oct-Dec
C 2005
D 2006
E 2007
C3 = Manufactured during 3rd quarter, 2005.
5 4 3
1
2
Introduction
This Illustrated Parts Breakdown (IPB) Manual contains the information necessary to locate and identify
assemblies, sub-assemblies, and specific parts of the 1800 Overhead Projector.
Part Numbers
All components available on a replacement basis are listed with their 3M identification number. The
parts identification list opposite each illustration provides the description adequate to identify
components. If the component is available only as part of the next higher assembly, the description
column provides the next higher assembly description or identification number.
Locating and Identifying a Part
If physical appearance and general location of an item are known:
1. Use the IPB Section Titles to help determine which assembly or sub-assembly includes the item.
2. Refer to the view for the assembly or sub-assembly and locate the item on the exploded view. Match the part
callout number to the corresponding number in the parts list.
3. Parts shown inside a dashed box can only be ordered as an assembly. Any part or mounting hardware shown
outside the box is not included with the assembly.
Machine Identification Plate
The serial number plate for the 1800 is located on the
bottom panel of the projector. The Machine
Identification Plate is divided into the following
components:
1. Product Name: The specific version number of the
projector.
2. Model Number/Alpha Code: The series number of the
projector followed by a three or four character alpha code identifier. The Alpha
Code indicates the design level, specific product
characteristics, power cord or distribution specific to a
country.
3. Lamp: The electrical rating of the lamp.
4. MFG Code: The MFG Code indicates the year and
quarter the projector was built.
5. S/N: The serial number assigned to this projector.
Ordering Parts
When ordering parts, include the following information:
1. Machine model number and serial number.
2. Parts identification number.
3. Part description.
4. Quantity required.
For U.S. retail customers: Call 1-800-650-8429, or fax
1-800-650-9268. Dealers: Refer to Dealers Guide. 3M
Subsidiaries: Contact Export Operations.
3M™Overhead Projector 1800 Illustrated Parts Breakdown
© 3M 2007 5
Quick Reference Parts Index
Description (By machine location) Part Number Section No. Item No.
Inverted Singlet Head Module 78-8120-8508-8 1 1
Inverted Triplet Head Module 78-8120-8509-6 1 2
Inverted Mirror Module 78-8120-8498-2 1 3
Light Shield Kit 78-8120-4070-3 1 9
Open Singlet Head Module 78-8120-8507-0 2 1
Open Mirror Module 78-8120-8499-0 2 2
Closed Head Module, Singlet 78-8120-8506-2 3 1
Closed Head Module, Doublet XO-0038-1786-3 3 2
Arm/Basic Post Kit 78-8120-8575-7 4 & 5 1A
Arm/Offset Post Kit 78-8120-8576-5 4 & 5 1B
Square Post with Arm Assembly XO-00381805-5 6 1
Square Post Mounting Hardware Kit 78-8121-4789--6 6 2
Post Pivot Kit 78-8120-8516-1 7 1
Post, Basic Arm 78-8120-8514-6 7 2
Offset Post Pivot Kit 78-8120-8515-3 7 3
Post, Inverted Arm 78-8120-8513-8 7 4
Top Cover Modules (U.S. and A4) See Sections 8 & 9 8 & 9 1A – 1D
Fresnel Lens, Dual Element – 182.5 mm 78-8120-8504-7 8 & 9 6
Fresnel Lens, Dual Element (Inverted Singlet) – 175.3mm 78-8120-8502-1 8 6
On/Off Button Kit, Red 78-8120-8563-3 8 & 9 8A
On/Off Button Kit, Blue 78-8120-8564-1 8 & 9 8B
Base Mirror Module (EVD/FNT) 78-8120-8511-2 10 1
Base Mirror Module (ENX/FXL) 78-8120-8512-0 10 2
Base Module 78-8120-8517-9 10 8
Lamp Housing Kit 78-8120-8520-3 10 9
Transformers See Section 10 10 4A – 4D
Power Cord, 120V (U.S. only) 78-8120-3184-3 10 11
ENX/FXL Single Lamp Socket 78-8120-3197-5 11 1
ENX/FXL Dual Lamp Socket - Right 78-8120-3196-7 12 1
ENX/FXL Dual Lamp Socket - Left 78-8120-4046-3 12 1
FNT Single Lamp Socket 78-8120-4003-4 13 8
FNT Dual Lamp Socket 78-8120-3193-4 14 4
EVD Dual Lamp Socket 78-8120-3193-4 15 4
Lamp, ENX 78-8011-1186-1 11 & 12 4A, 5A
Lamp, FXL 78-8073-7100-6 11 & 12 4B, 5B
Lamp, FNT 78-8054-1175-4 13 & 14 3, 5
Lamp, EVD 78-8079-8791-8 15 5
120V Fan Motor Assembly XO-0038-0869-8 17 4
230V Fan Motor Assembly XO-0038-0868-0 17 5
Roller Kit See Section 18 18 1 – 4
3M™Overhead Projector 1800 Illustrated Parts Breakdown
© 3M 2007 6
Section 0. Machine Overview
Head Assembly
(See Sections 1, 2, and 3)
Top Cover Assembly
(See Sections 8 and 9)
Arm Assembly
(See Sections 4 and 5)
Base Assembly
(See Section 10)
ENX/FXL Lamp Housing
(Single and Dual)
(See Sections 11 and 12)
FNT Lamp Housing
(Single and Dual)
(See Sections 13 and 14)
EVD Lamp Housing
(Dual)
(See Section 15)
Lamp Assembly
(See Section 16)
Cooling Fan Assembly
(See Section 17)
Roller Kit
(See Section 18)
Wire Jumpers
(See Sections 19 and 20)
Plastic Parts Kit
(See Section 21)
Electrical Parts Kit
(See Section 22)
Post Mounting Hardware
(See Section 6 and 7)
Open Closed Inverted
3M™Overhead Projector 1800 Illustrated Parts Breakdown
© 3M 2007 7
Section 1. Inverted Head Assembly
Inverted Head Assembly Parts List
Item 3M Part Number Description Qty.
1 78-8120-8508-8 Inverted Singlet Head Module 1
2 78-8120-8509-6 Inverted Triplet Head Module 1
3 78-8120-8498-2 Inverted Mirror Module (Includes Mirror, Tape, and Holder) 1
4 78-8120-3158-7 Mount, Inverted Head * 1
5 78-8120-3154-6 Yoke, Triplet, Left * 1
6 78-8120-3155-3 Yoke, Triplet, Right * 1
7 78-8096-5792-3 Lens, Wide Angle (254.78mm) 1
8 78-8097-3693-3 Lens, Triplet (345mm) 1
9 78-8120-4070-3 Light Shield Kit (Optional) 1
*Note:Once current inventory is gone, replacement is entire head assembly.
Light Shield Kit
3
1,2
6
5
7
8
4
Inverted Triplet Head only
Inverted Singlet Head only
3M™Overhead Projector 1800 Illustrated Parts Breakdown
© 3M 2007 8
Section 2. Open Head Assembly
Open Head Assembly Parts List
Item 3M Part Number Description Qty.
1 78-8120-8507-0 Open Singlet Head Module 1
2 78-8120-8499-0 Open Mirror Module 1
3 78-8014-8951-5 Lens, Wide Angle, Singlet (293mm) 1
4 78-8120-8565-8 Head Stabilizer Kit 1
3
Head Stabilizer Kit
4
2
1
3M™Overhead Projector 1800 Illustrated Parts Breakdown
© 3M 2007 9

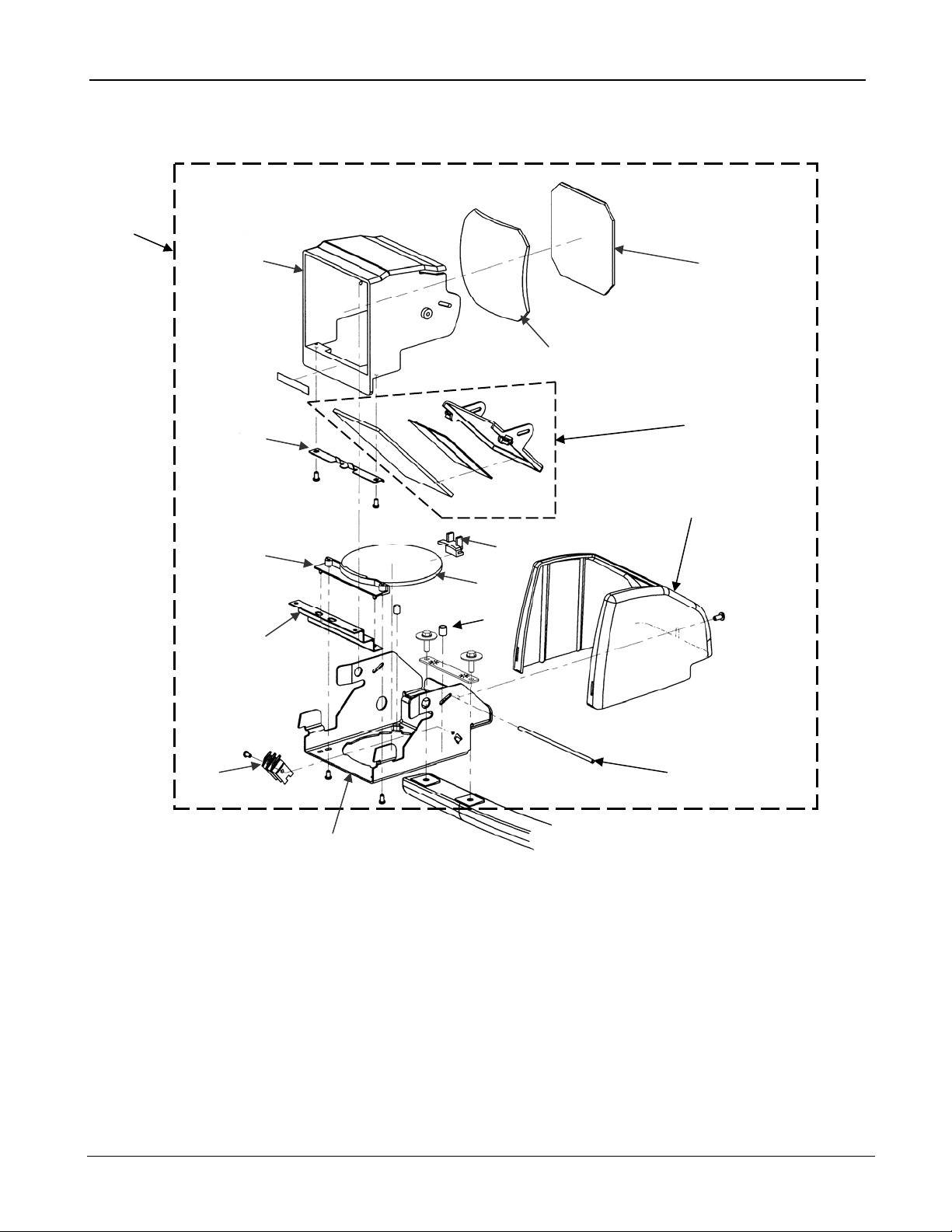

Section 3. Closed Head Assembly
4
(Singlet Head only)
3
1, 2
5
6
14
13
15
8
7
9
11
10
12
16
3M™Overhead Projector 1800 Illustrated Parts Breakdown
© 3M 2007 10
Closed Head Assembly Parts List
Item 3M Part Number Description Qty.
1 78-8120-8506-2 Closed Head Module, Singlet (Includes Mirror Housing Assy.) 1
2 XO-0038-1786-3 Closed Head Module, Doublet (Includes Mirror Housing Assy.) 1
3 78-8064-1562-2 Housing, Exit Lens 1
4 78-8064-1650-5 Glass, Articulate Head (Singlet) 1
5 78-8014-8812-9 Lens, Articulate 1
6A 78-8064-1602-6 Clamp, Lens Dust Shield, Doublet 1
6B 78-8054-1791-8 Clamp, Lens Dust Shield, Singlet 1
7 78-8064-1643-0 Mount, Lens, Singlet 1
8A 78-8073-2980-6 Lens, Wide Angle (Singlet only) 1
8B 78-8011-1440-2 Lens, Meniscus (Doublet only) 1
9 78-8064-1457-5 Mirror Housing Assembly 1
10 78-8120-3122-3 Cover, Doublet, Articulate 1
11 78-8011-1445-1 Pivot, Rod 1
12 78-8120-3121-5 Bracket, Lens 1
13 78-8014-8817-8 Spring, Tension 1
14 78-8064-1797-4 Shield, Dust 1
15A 78-8064-1596-0 Clamp, Lens, Singlet (Singlet only) 1
15B 78-8064-1595-2 Clamp, Lens (Doublet only) 1
16 78-8064-1646-3 Tubing, Lens 1
Este manual sirve para los siguientes modelos
12
Tabla de contenidos
Otros manuales de Proyector de 3M
3M
3M PX5 Series Manual de usuario
3M
3M X66 - Digital Projector XGA LCD Manual
3M
3M Digital Projector X20 Manual de funcionamiento
3M
3M X90W Manual de usuario
3M
3M WX20 - Digital Projector WXGA LCD Manual
3M
3M CP45 Manual de usuario
3M
3M Digital Projector X75 Manual de usuario
3M
3M X95I - Digital Projector XGA LCD Manual de instalación y funcionamiento
3M
3M Digital Projector X75 Manual
3M
3M PX5 Series Manual de instalación y funcionamiento
3M
3M Multimedia Projector S55i Manual de usuario
3M
3M Multimedia Projector X62w Manual de usuario
3M
3M MP 180 Manual
3M
3M X76 - Digital Projector XGA LCD Hoja de especificaciones
3M
3M 9050 Guía de configuración
3M
3M Multimedia Projector S50 Manual de usuario
3M
3M Multimedia Projector MP8790 Manual de instalación y funcionamiento
3M
3M Multimedia Projector MP8790 Manual de usuario
3M
3M 9800 Manual de usuario
3M
3M Multimedia Projector MP8765 Manual de usuario
