Kohler C3-050 Manual de usuario

English page 2-7

中文页码 8-13

科勒（中国）投资有限公司

中国上海市静安区江场三路158号邮编：200436

制造商：上海科勒电子科技有限公司

中国上海市宝山区丰翔路1955号邮编：200444

Smart Seat

清舒宝智能便盖

1305684-MY01-B

C3-050

K-18751MY-0

Warning: Risk of electric shock, fire or personal injury. This product

must be installed safely. Connect only to dedicated 220V~, 50Hz ,

10A circuit protected by Ground-Fault Circuit-Interrupters (GFCI’s)

or Earth-Leakage Circuit-Breakers (ELCB’s).

Min water pressure 0.07Mpa (dynamic pressure)

Max water pressure 0.74Mpa.

When install the product in the room, a stop valve shall be installed in

a close proximity. For emergency circumstances, the water inlet valve

shall be stopped without using any tools; otherwise unexpected failure

may cause the loss to the customer.

1305684-MY01-B

2

Kohler Co.

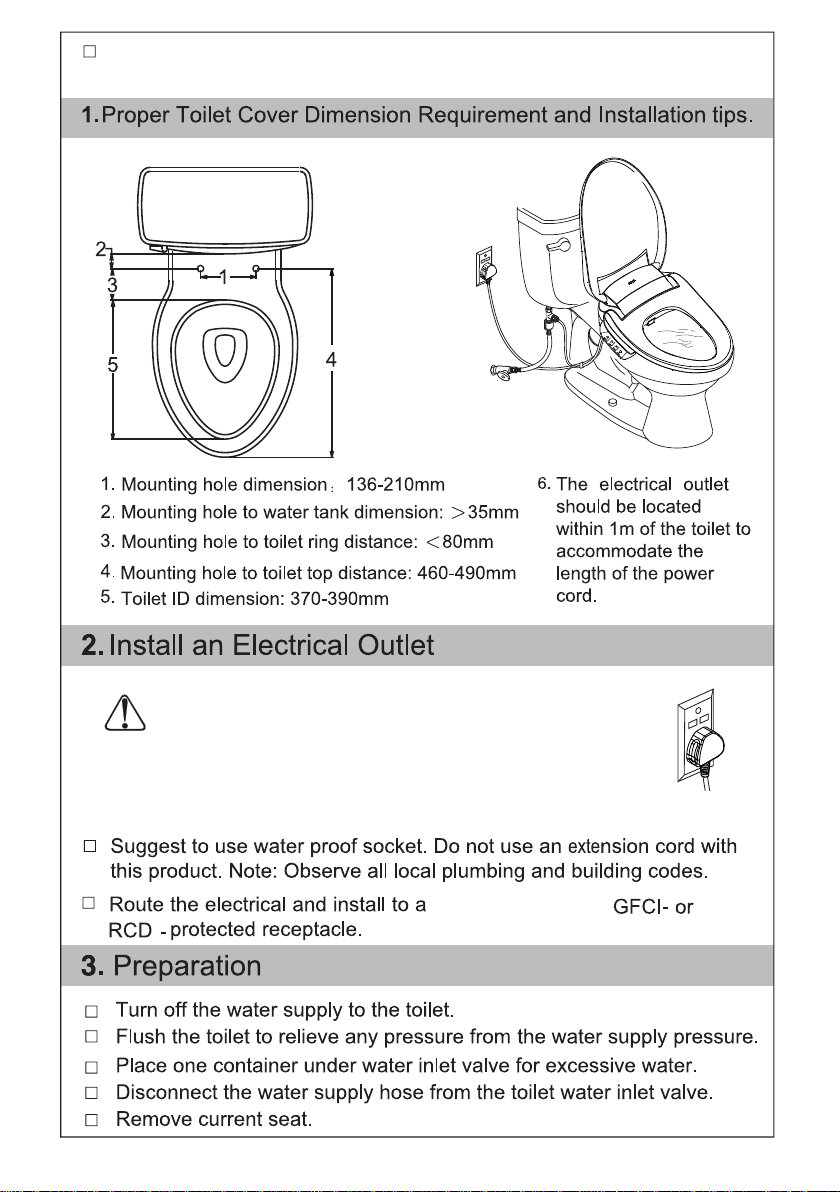

The new hose-sets supplied with the appliance are to be used and that old

hose-sets should not be reused.

Warning: Risk of electric shock, fire or personal injury.

This product must be installed safely. Connect only to

dedicated 220V~, 50Hz, 10A circuit protected by

Ground-Fault Circuit-Interrupters (GFCI’s) or Earth-

Leakage Circuit-Breakers (ELCB’s).

220V~, 50Hz, 10A

Kohler Co.

3

1305684-MY01-B

1305684-MY01-B

4

Kohler Co.

Kohler Co.

5

1305684-MY01-B

The new hose-sets supplied with the appliance are to be used and

that old hose-sets should not be reused.

Connect T-valve to water supply system (valve shall be purchased by

customer).

1305684-MY01-B

6

Kohler Co.

The seat is activated by skin-to-seat contact. To activate the seat controls

for testing purpose, facing the toilet first, then hold seat from right front

edge about ½ position by hand, hear the seat on right side of the rotating

shaft generate one “click” (gravity induction).

The contact might not be activated if

It is difficult to activate contact for light weight children.

There’s clearance between seat bumper to toilet due to mobile structrure

design.

Note

customer does not sit all way in.

(inside)

Toilet seat downward

Clearance

Contact

Switch ON

Ensure if water inlet valve is OPEN.

Kohler Co.

7

1305684-MY01-B

必须使用随器具附带的新软管组件，旧软管组件不能重复使用。

警告：触电、火灾或人身伤害的危险。本产品必须安全接地。只能连接

到专用的 220V~, 50Hz，10A带接地故障断路器或接地漏电保护器的电

路中。

最小进水压力0.07Mpa（动压）

最大进水压力0.74Mpa。

在安装本产品的同一房间中，需要在触手可及的位置安装一个止水阀，

用于紧急情况下，无需借助工具即可切断本产品的进水水路；否则本

产品的意外故障可能会导致用户损失。

1305684-MY01-B

8

Kohler Co.

220V~，50Hz，10A

警告：触电、火灾或人身伤害的危险。本产品必须安全

接地。只能连接到专用的 220V~，50Hz，10A带接地

故障断路器或接地漏电保护器的电路中。

Kohler Co.

9

1305684-MY01-B

1305684-MY01-B

10

Kohler Co.
