USER GUIDE

contents

Introduction 2

Operating Instructions - Prefinished Model 4

Operating Instructions - Integrated Model 6

Accessories 8

Basket, Cup racks, Drain filter access panel, Mega rack, Plate insert, Cutlery basket

Loading 9

Exa ples of how we reco end you load your ,

Exa ples of how not to load your

Dispensers 10

Detergent dispenser, Filling the detergent dispenser, Detergent

quantities, Rinse agent dispenser, Filling the rinse agent dispenser

Water Softener 12

Dinnerware Care 14

Caring for your dinnerware, Vacation Ti e

Wash Programs 15

Wash descriptions for Rinse, Heavy, Nor al, Fast, Delicate, Standard & Eco progra s

Dishwasher Standards est 16

Option Adjustment Mode 17

How to enter Option Adjust ent Mode, How to change the Rinse Agent Setting,

Water Softener Setting, Auto Power Option, End of Wash Progra Beeps,

Closed Drawer Option, and the Clean Dish Indicator Option.

User Maintenance Instructions 20

Cleaning the , Cleaning the drain filter, spray ar , and filter plate

rouble Shooting 22

Proble solver chart, Possible causes, What to do

Fault codes 24

How to recognize a fault code, How to attend to a fault code, Fault code chart

Important Safety Information 25

Fisher & Paykel SmartCare Manufacturer’s Warranty 27

Customer Care 28

Installation Checklist 29

user guide

PREFINISHED

& IN EGRA ED

MODELS

PREFINISHED DD603

White, Brushed stainless steel,

Iridium stainless steel and Black

IN EGRA ED DD603 I

introduction

Thank you and congratulations for purchasing your Fisher & Paykel

. The is unique and offers benefits no other

dish asher can. The utilizes the efficiency and easy access of

the everyday kitchen dra er, and turns it into the most advanced dish asher in

the orld. This booklet ill guide you through the operating instructions and

features of your . We recommend that you read this User Guide

thoroughly before you start using your , for the sake of safety as

ell as success.

The drawers of the are totally independent of each other. An interchangeable and easy to

remove rack system, to suit your daily needs and a deeper drawer design to accommodate 12 large dinner

plates up to 11 7/1 “ in diameter. The minimizes water and energy consumption with each

drawer using less than half the water of a conventional dishwasher. Combining this with the precise markings

inside the detergent dispenser, you will never use too much or too little detergent for each program allowing

you to be guilt-free when washing even the smallest load. Used cleverly, the double can even

provide extra kitchen storage.

special talents

Progress of the wash program

As the wash program advances through the cycle, the following symbols will be

highlighted in the Electronic Display to indicate the progression.

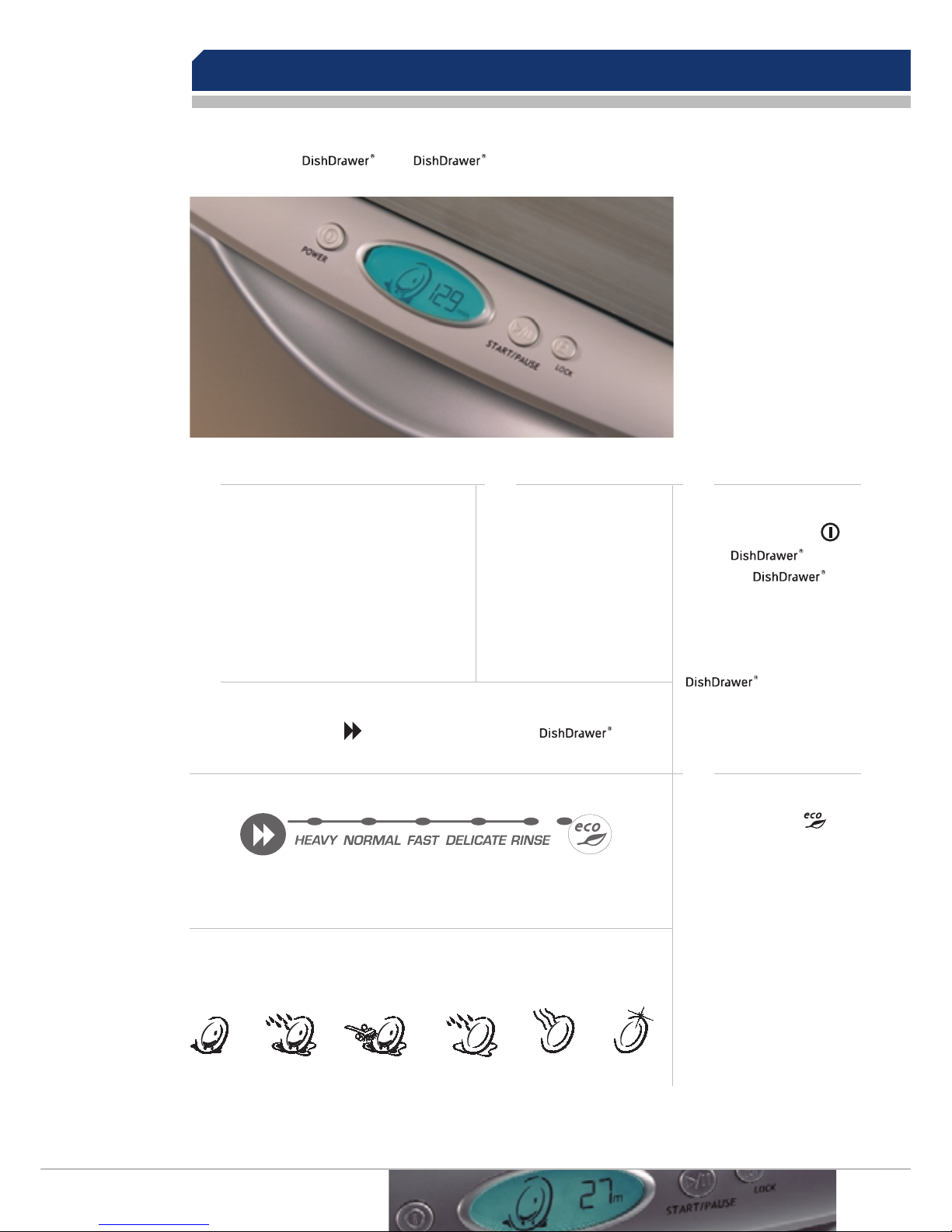

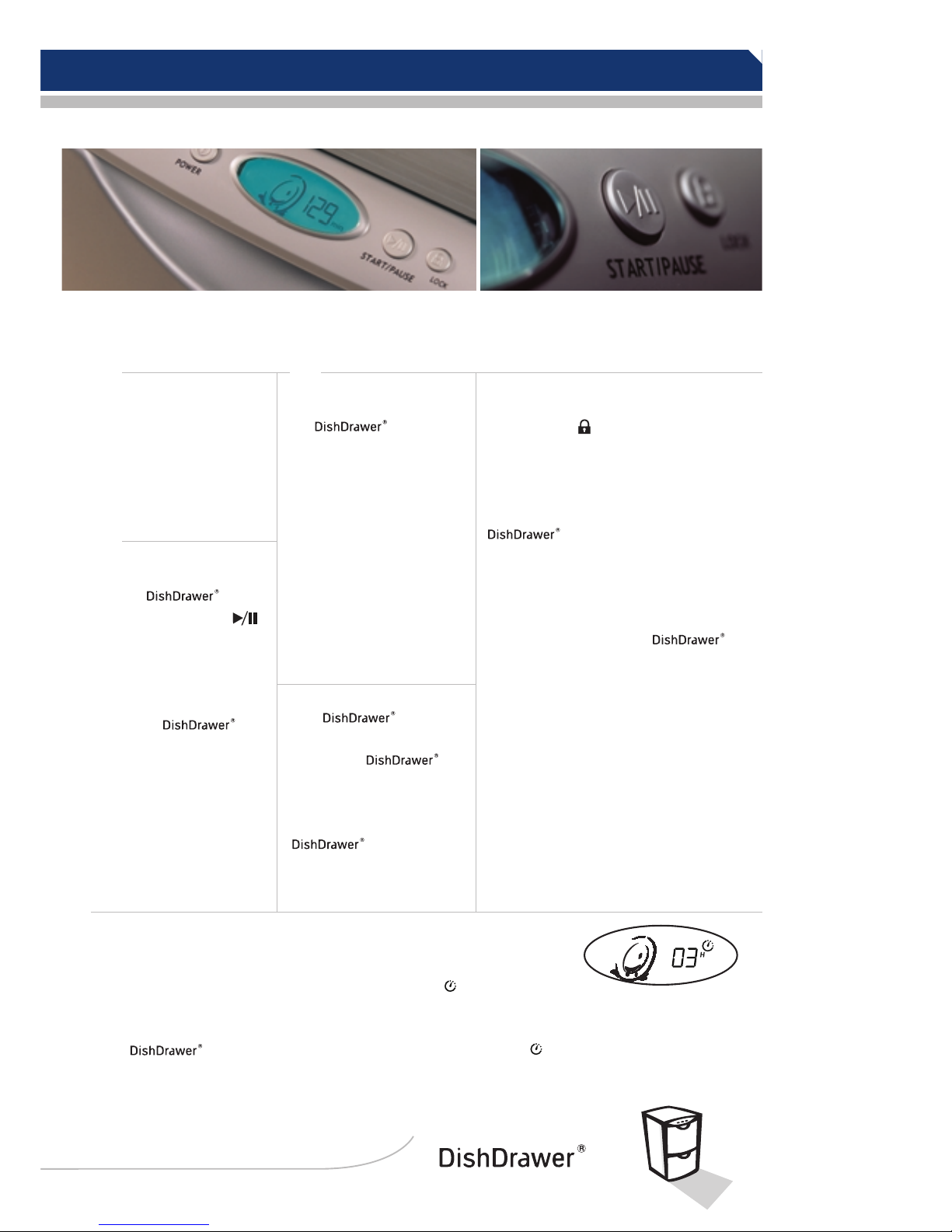

operating instructions - prefinished model

If you have a double , each has its own control panel and can run independently of the other.

Load Dishes

Remove all food scraps and load the dishes.

Electronic Display

The Electronic Display shows

progress through a wash

program and time remaining.

When the wash program has

started, the Electronic Display

will countdown in one minute

increments.

Add Detergent & Rinse Aid Press the POWER Button

Press the POWER button to

turn the on or off.

Opening the will

automatically power up for 30

seconds. To end the wash

program in mid cycle, press the

POWER button. Any water in the

will be pumped out.

DIRTY PRE WASH MAIN WASH POST RINSE DRYING CLEAN

Select Wash Program

Press the PROGRAM button to select the desired wash. The will

remember the last program used.

ECO Button (optional)

Press the ECO button if

you would like the wash program

to use less energy and time. The

red ECO light will indicate the

feature is on. If your dishes are

heavily soiled or you require

enhanced dry performance, we

do not recommend ECO

programs.

1 2 3

Note

If the is operating

and a power failure occurs, it

will stop. The

may be unable to be opened

during this time. When the

power supply is resumed, the

will restart in the

same part of the wash program.

Lock Button (optional)

The Lock button activates/ deactivates the

Keylock or the Childlock functions.

Keylock

The Keylock function disables all the buttons on the

. To activate, press and hold the

LOCK button until you hear one beep (about 3

seconds).

Childlock

The Childlock feature locks the and

disables all the buttons. To activate, press and hold

the LOCK button until you hear two beeps (about 5

seconds).

To cancel Keylock or Childlock, press and hold the

LOCK button until you hear one beep and the Lock

symbol disappears from the electronic display.

Check

Ensure the drain filter is flush

with filter plate and the spray

arm can rotate about the center

easily.

Start

Close the . Press

the START/PAUSE button

to initiate the wash program.

This button also functions as the

Delay Start.

Pause

To pause the

during its wash cycle, press the

START/PAUSE button and wait for

three beeps before opening.

Restart by pressing the

START/PAUSE button. Forcing the

drawer open while in mid cycle

may cause damage or injury.

Finish

The will beep six

times to indicate the end of the

wash program. At the end of the

wash program the drying fan will

continue to run for a set time or

until the drawer is opened. The

fan assists with drying and uses

negligible amounts of energy. It

is normal for some water to

remain in the drain filter area

after the wash program is

complete.

To cancel Delay Start, press the POWER button or

hold the START/PAUSE button until the delay

symbol disappears.

DELAY S AR MODE (optional)

The start of the wash program can be delayed from 1 to 12 hours.

To activate Delay Start:

1. Press and hold the START/PAUSE button until the delay symbol

appears on the Electronic Display.

2. Continue until the desired delay time has been reached.

3. The will start once the delay time has elapsed and

the drawer is closed.

6 8

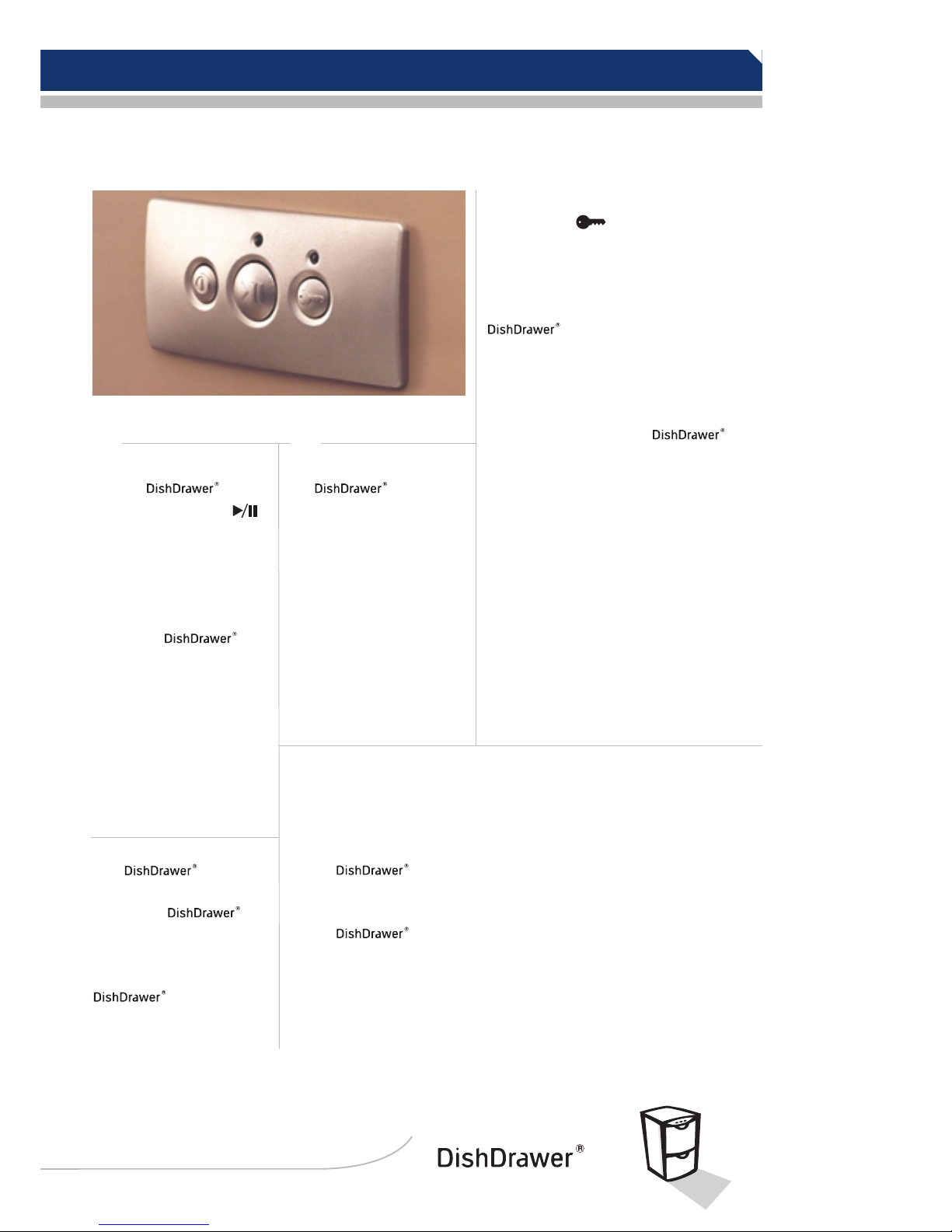

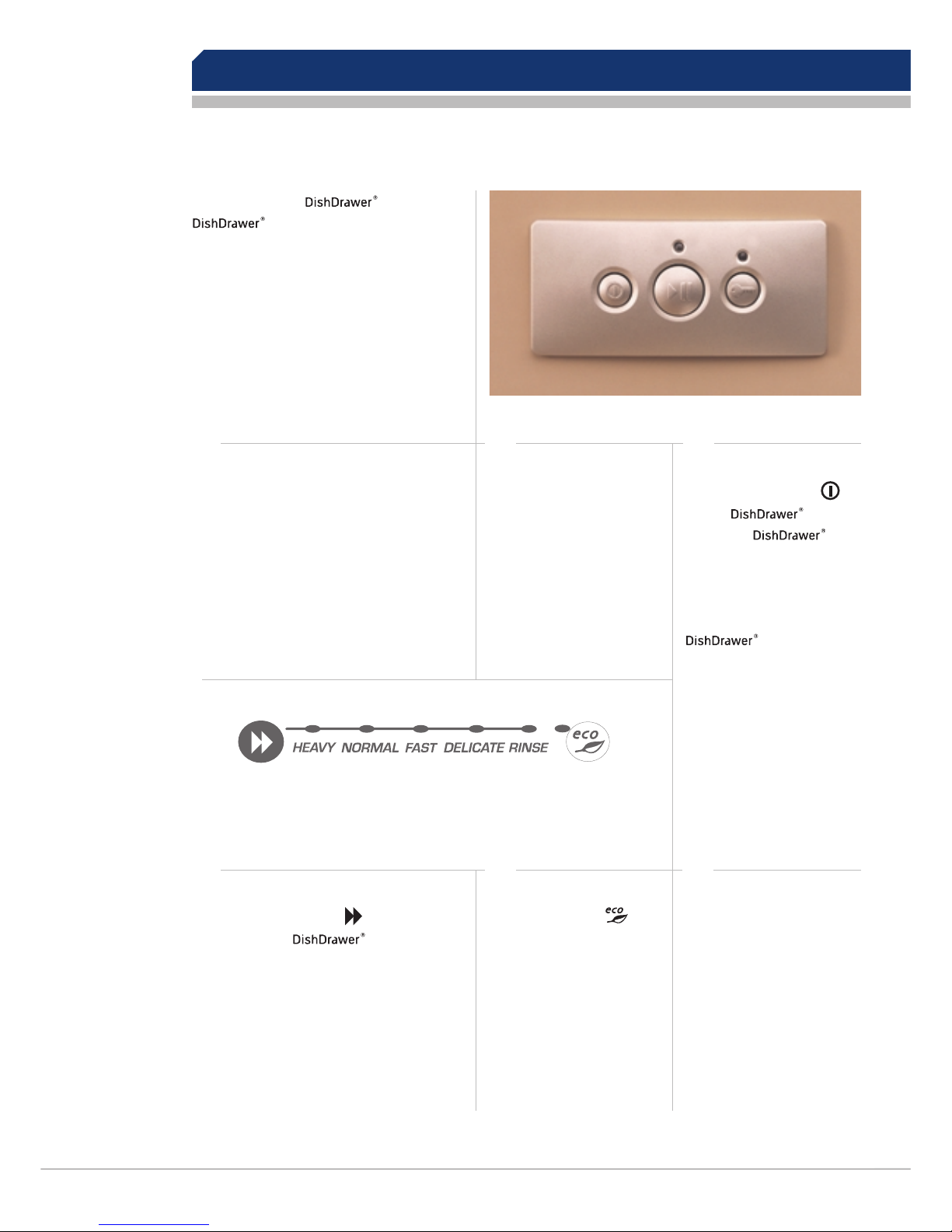

operating instructions - integrated model

Select Wash Program

Press the PROGRAM button to select the

desired wash. The will remember

the last program used.

ECO Button (optional)

Press the ECO button if

you would like the wash program

to use less energy and time. The

red ECO light will indicate the

feature is on. If your dishes are

heavily soiled or you require

enhanced dry performance, we

do not recommend ECO

programs.

Check

Ensure the drain filter is flush

with filter plate and the spray

arm can rotate about the center

easily.

If you have a double , each

has its own control panel and can

run independently of the other.

Load Dishes

Remove all food scraps and load the dishes.

Add Detergent & Rinse Aid Press the POWER Button

Press the POWER button to

turn the on or off.

Opening the will

automatically power up for 30

seconds. To end the wash

program in mid cycle, press the

POWER button. Any water in the

will be pumped

out.

123

456

Start

Close the . Press

the START/PAUSE button

to initiate the wash program.

This button also functions as the

Delay Start.

Pause

To pause the

during its wash cycle, press the

START/PAUSE button and wait

for three beeps before opening.

Restart by pressing the

START/PAUSE button. Forcing

the drawer open in mid-cycle

may cause damage or injury.

Finish

The will beep six

times to indicate the end of the

wash program. At the end of the

wash program the drying fan will

continue to run for a set time or

until the drawer is opened. The

fan assists with drying and uses

negligible amounts of energy. It

is normal for some water to

remain in the drain filter area

after the wash program is

complete.

DELAY S AR MODE (optional)

The start of the wash program can be delayed from 1 to 12 hours.

To activate Delay Start:

1. Press and hold the START/PAUSE button until the light above the START/PAUSE

button turns orange.

2. The will emit a ‘beep’ as you hold down the START/PAUSE button,

each beep indicates another hour delay. Continue holding the START/PAUSE button

until the desired delay time is reached.

3. The will start once the delay time has elapsed and the

drawer is closed.

To cancel Delay Start, press the POWER button or hold the START/PAUSE button until

the light turns green.

Lock Button (optional)

The Lock button activates/ deactivates the

Keylock or the Childlock functions.

Keylock

The Keylock function disables all the buttons on the

. To activate, press and hold the

LOCK button until you hear one beep (about 3

seconds).

Childlock

The Childlock feature locks the and

disables all the buttons. To activate, press and hold

the LOCK button until you hear two beeps (about 5

seconds).

To cancel Keylock or Childlock, press and hold the

LOCK button until the green light above the LOCK

button disappears.

Note

If the is operating

and a power failure occurs, it

will stop. The

may be unable to be opened

during this time. When the

power supply is resumed, the

will restart in the

same part of the wash program.

7 8

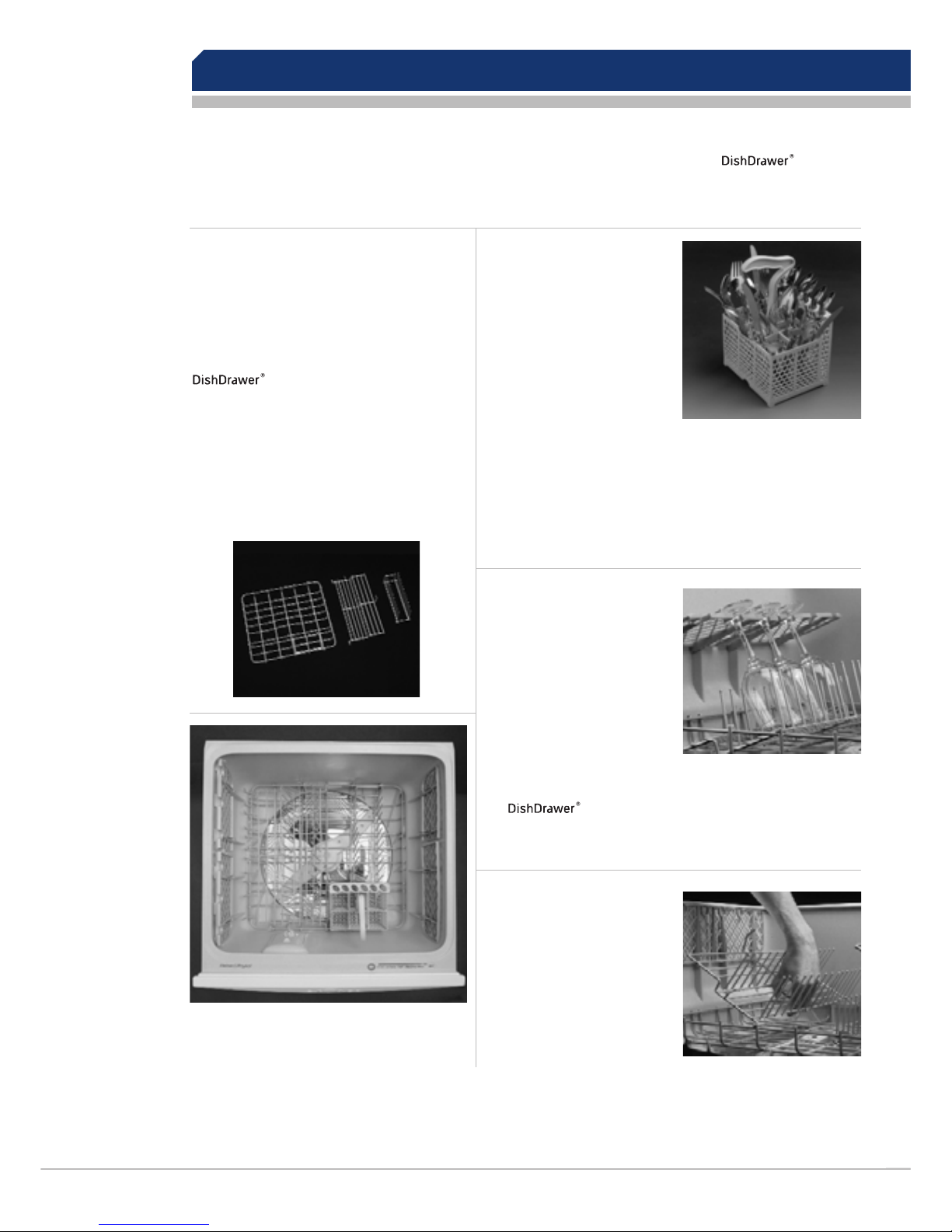

accessories

How to install the Mega Rack

To install the Mega rack, place the

outer legs of the rack on top of the

basket, and clip the Mega rack to

the side of the basket. When the

Mega rack is correctly installed it

should not feel loose in the basket.

a. Basket

The basket holds some of the accessories in place

and keeps the dishes above the spray arm. Without

the inserts, large bowls and pots can be placed flat.

b. Drain Filter Access Panel

The drain filter access panel is designed to snap

onto the basket over the drain filter. This prevents

objects from touching the base of the

and stopping the rotation of the

spray arm, while still giving access to the drain filter.

c. Mega Rack

The Mega rack is designed to hold glasses, cups

and small plates.

d. Plate Insert

The plate insert supports plates and bowls.

Cup Racks

Cups, glasses and kitchen

utensils can be placed on the

left and right hand side of the

cup racks. For best performance

ensure there are no large items

below, blocking the wash water

from reaching the cup racks.

Wine glasses can be supported

on the cup racks if used in

conjunction with the Mega Rack.

There are stops on the cup rack

to prevent cups from touching

the wall. This will

help improve the dry and wash

performance.

Cutlery Basket

Cutlery, small kitchen utensils

and some plastic lids are best

placed into the cutlery basket.

For best wash performance, we

recommend loading cutlery with

handles pointing down and sharp

utensils with their handles facing

up, to reduce the risk of injury.

Mix spoons, knives and forks

within each section, to stop

cutlery nesting together and to

ensure the water circulates

freely. Keep stainless steel from

touching silver cutlery to avoid

staining. Use the oval slots

(spoon rack) for spoons and

teaspoons. Small items, like

plastic lids, can be placed under

the spoon rack, this will prevent

them from being displaced by

wash water and falling to the

bottom, where they may stop

the spray arm rotation.

The inserts and racks can be added or removed to suit your individual needs. If you have the double model,

some of the accessories are interchangeable between the two drawers. For example you can combine the two Mega Racks

into one drawer and wash all cups and glasses, leaving the other drawer for plates and larger items.

Otros manuales para DishDrawer

Este manual sirve para los siguientes modelos

Otros manuales de Lavavajillas de Fisher & Paykel

Fisher & Paykel

Fisher & Paykel DISHDRAWER DD24DI9 Manual de usuario

Fisher & Paykel

Fisher & Paykel CONTEMPORARY DW60UNT4B2 Manual de usuario

Fisher & Paykel

Fisher & Paykel DISHDRAWER DD24SDFTX9 Instrucciones de funcionamiento

Fisher & Paykel

Fisher & Paykel DD24DCTW9 Manual de usuario

Fisher & Paykel

Fisher & Paykel DD24SA Manual de usuario

Fisher & Paykel

Fisher & Paykel DishDrawer DD602 Manual de usuario

Fisher & Paykel

Fisher & Paykel double drawer DD6051 Instrucciones de montaje

Fisher & Paykel

Fisher & Paykel DW24UNT4X2 Manual de usuario

Fisher & Paykel

Fisher & Paykel CK Series Manual de usuario

Fisher & Paykel

Fisher & Paykel DD24DC Manual de usuario

Fisher & Paykel

Fisher & Paykel DW60U2I Manual de usuario

Fisher & Paykel

Fisher & Paykel DW24U6I1 Manual de usuario

Fisher & Paykel

Fisher & Paykel DD60DAHX9 Instrucciones de funcionamiento

Fisher & Paykel

Fisher & Paykel DW60FC4W1 Manual de usuario

Fisher & Paykel

Fisher & Paykel DD24S Manual de usuario

Fisher & Paykel

Fisher & Paykel DW60U2I2 Manual de usuario

Fisher & Paykel

Fisher & Paykel DishDrawer DD60S 7 Manual de usuario

Fisher & Paykel

Fisher & Paykel DishDrawer DD24DT Series Manual de usuario

Fisher & Paykel

Fisher & Paykel DISHDRAWER DD24DAX9N Manual de usuario

Fisher & Paykel

Fisher & Paykel DOUBLE DISHDRAWER DD60DHI Manual de usuario

Fisher & Paykel

Fisher & Paykel DishDrawer DS603 PREFINISHED Manual de usuario

Fisher & Paykel

Fisher & Paykel DD90SDF(H)TX2 Manual de usuario

Fisher & Paykel

Fisher & Paykel DD60DDFHX7 Manual de usuario

Fisher & Paykel

Fisher & Paykel SINGLE DISHDRAWER DD24SCTX9 Manual de uso y mantenimiento

Manuales populares de Lavavajillas de otras marcas

Electrolux

Electrolux ESI5211LOX Manual de usuario

KitchenAid

KitchenAid KUDB230B Manual de usuario

Brandt

Brandt BDJ424DB Manual de usuario

Asko

Asko DSD767UXXL.AU Manual de usuario

Beko

Beko DFN26210W Manual de usuario

NEFF

NEFF S153ITX00E Hoja de especificaciones

Midea

Midea SV 4.45 wi Manual de usuario

LG LDF7932 Manual de usuario

Gorenje

Gorenje GV63214 Manual de usuario

Hotpoint

Hotpoint HDA1100ZWH Manual de servicio

Blomberg

Blomberg LDFN2240W Manual de usuario

AEG

AEG FFB83836PM Manual de usuario

Cylinda

Cylinda DM3220RFD Manual de usuario

Atag

Atag DW8214MB Manual de usuario

GE GLD8000 Series Manual de usuario

Siemens

Siemens SN23HI02KE Hoja de especificaciones

Omega

Omega ODW717X Manual de usuario

BORETTI

BORETTI BVW-683 Manual de usuario
